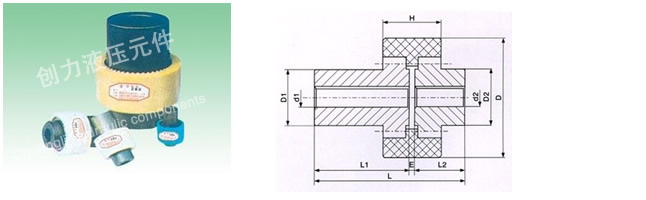

 NL Coupling |
Technical parameters
Model |
Nominal torque
n.m |
Rotary Speed
r/min |
Main Size |
Maximum size difference |
Shaft hole diameters
d1 d2 |
Shaft hole lengthL1 L2 |
L |
D |
D1 D2 |
E |
H |
Axial direction
mm |
Radial
mm |
Angle |
NL1 |
40 |
6000 |
6-12 |
14-32 |
According to the customers' requirements |
40 |
26 |
4 |
34 |
2 |
±0.3 |
1° |
NL2 |
100 |
6000 |
12-22 |
20-45 |
52 |
36 |
4 |
40 |
2 |
±0.4 |
1° |
NL3 |
160 |
6000 |
20-28 |
20-60 |
66 |
44 |
4 |
46 |
2 |
±0.4 |
1° |
NL4 |
250 |
6000 |
28-38 |
25-80 |
83 |
58 |
4 |
48 |
2 |
±0.4 |
1° |
NL5 |
315 |
5000 |
32-42 |
30-110 |
93 |
68 |
4 |
50 |
3 |
±0.4 |
2° |
NL6 |
400 |
5000 |
40-48 |
40-110 |
100 |
68 |
4 |
52 |
3 |
±0.4 |
2° |
NL7 |
630 |
3600 |
45-55 |
45-110 |
115 |
80 |
4 |
60 |
3 |
±0.6 |
2° |
NL8 |
1250 |
3600 |
48-65 |
50-140 |
140 |
96 |
4 |
72 |
3 |
±0.6 |
2° |
NL9 |
2000 |
2000 |
60-80 |
60-170 |
175 |
124 |
6 |
93 |
4 |
±0.7 |
2° |
NL10 |
3150 |
1800 |
70-100 |
70-210 |
220 |
157 |
8 |
110 |
4 |
±0.7 |
2° |
|
|
|
