 SNBY Bidirectional lubrication pump |
Technical parameters
Model |
Delivery capacity ml/r |
Pressure MPa |
SNBY 0.8/0.5 |
0.8 |
0.5 |
SNBY 2.5/0.5 |
2.5 |
SNBY 5/1.6 |
5 |
1.6 |

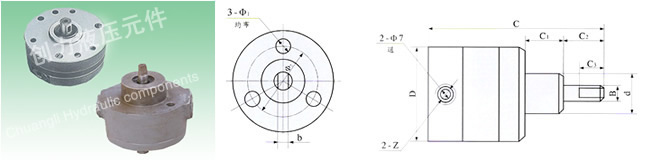

Technical specification
Model |
C |
C1 |
C2 |
C3 |
D |
D1 |
d |
b |
ф 1 |
ф 2 |
Z |
SNBY 0.8/0.5 |
78 |
20 |
18 |
8 |
ф 73 |
ф 36 |
ф 8 |
5 |
ф 7 |
ф 53 |
ZG 1/4” |
67 |
14 |
13 |
7 |
ф 40 |
ф 52 |
ZG 1/4” |
SNBY 2.5/0.5 |
80 |
20 |
13 |
12 |
ф 73 |
ф 36 |
ф 8 |
5 |
ф 7 |
ф 52 |
Z 1/4” |
80 |
16 |
19 |
8 |
ф 55 |
M14×1.5 |
78 |
16 |
19 |
8 |
ф 55 |
M10×1 |
SNBY 5/1.6 |
97 |
5 |
25 |
4×4×12 Flat key |
ф 90 |
ф 35 |
ф 12 |
11 |
ф 9 |
ф 72 |
Z 3/8” |
|
|
|
