Descriptions
 LPG series hig-speed centrifugel atomizing drier is a special equipment and is suitable for drying emulsion, suspending liquid, liquor and so on, Particularly it has unique for drying polymers and resins; dyestuff and pigment; ceramics, glass; derust agent; pesticide; carbohydrate, dariry products; detergent and surfactant; fertilizer, organic compound, inorganic compound and so on.

Principle
Air is turned into hot air through air filter and enters into hot air distributor at the top of dry chamber and then enters into dry chamber and rotates in the state of helix. At the same time liquid of raw material is sent to centrifugal atomizet at the top of dry chamber. Pumped by pump through filter. In which liquid of raw material atomizers small drops. Airand liquid of raw material flow and contact each other fully. The moisture vaporize rapidly. Liquid of raw materia is dried into finished product in a short time. The finished product is discharged through cyclone separator at the bottom of drier. The wasted air is exhausted through fan.

Features
¡ôIts dry speed is very quick. In genral, it needs 5-15 seconds. It has feature of momentary dry.
¡ôBecause raw material can be dried momentarily. Especially, it is suiable for drying thermal sensitive raw materials. It can maintain color, smell and smeIl of raw materials.
¡ôIts operation is stable and simple. Its regulation and control is very convenient. It is easy to realize continuous operation.
¡ôThe distribution, fluidity and solubility of product are good.

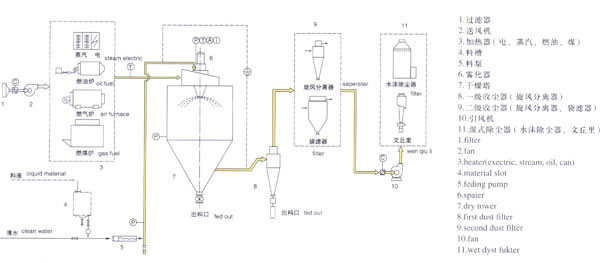

Flow chart
Introduction to performance
¡ôAtomizer as a core part: adapts fully high precision bearing (SKF bearing made in Sweden), vibration value in idle¡Ü5 AM, vibration value in load¡Ü5 AM.
Operation without trouble may reach to over 7000 hours.
¡ôTotal fed amount of atomizer£º5~15000kg/hr;
¡ôElectric control system: it will be divided into different level and scale. Different control scheme can meet different need; classical logic mode; dynamic flow chart simulative system; FX-DU/WIN-C special software program; PLC control, configuration monitoring; man-machine interface touch screen operation control.
¡ôMedical drier may increase: vibration beat, air sweeping, cooling jacket, etc. device. Pipeline is in conformity with the requirements of GMR.

Evaporated curve of moisture
Because atomizing drier is a non-standard equipment, it will be changed in accordance with factors such as process requirement, material property, field condition and so on. The curve may provide to customer as reference when choose type. Please fill in "Letter of design condition" and send it back to our company. We will provide reasonable configuration scheme to you.

Technological process

Technical Parameters
