Scope of application
LZG helix vibration drier is mainly used for drying pill of Chinesetraditional medicine.It can also be suitable for drying granule,short strip and ball raw material of chemical industry,pharmaceutical industry, foodstuff industry,construction material industry,feed industry and so on.

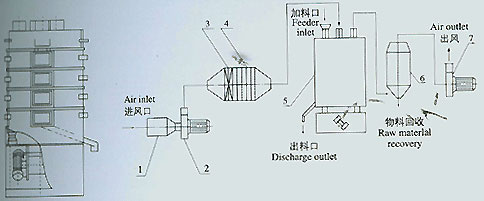

Principie of Work
The damp raw material enters into helix bed from fed inlet at the top and moves along with the helix bed from up to low and make jumping mot ino to the bottom and then discharge under the actio of vibrating force at the circle and gravity Meanwhile cleam hot air enters into it from the bottom of helix bed and carries out heat exchange with raw material on teh helix bed fully and exhausts from the outlet at the top. In this way the dry purpose of damp raw material is reached.

Features
◆Because the hot air passes through the layer of raw material several times and acts counter motion towards the raw material, the heat exchange is fully used and the thermal efficiency is high;
◆The structure is compact and it occupies small area;
◆The stay time of raw material in the helix bed can be adjusted and the operation is very convenient;
◆The raw material acts the motion of circle at helix bed from up to low, at the same time the equipment can jump itself, so the contact surface between hot air and raw material is increased too and the dry effect is strengthened.
◆The equipment is suitable for continuous operation because of continuous feeding and discharging raw material. Mean while it is easy to meet the requitements of GMP.
◆It does not damage the surface and shape of raw material basically. It can not only maintain the roundess of pill but also decrease the broken rate of pill.

Technical Parameters
