EYH Series Two Dimensions Mixer



Principle
EYH Series Two Dimensions Mixer Principle Two dimensioal mixer mainly consists of three big parts. manely,rotating cylinder,swinging rack and frame. The rotating cylinder lies on the swinging rack,supported by four wheels and its axial fixation is done by two stop wheels Two of four wheels are driven by rotating power system to make the cylinder rotate. The swingingrack is driven by a set of crandshaft swinging bar which is mounted on the frame and the swinging rack is supported on the frame.

Features

The rotating cylinder of EYH Two Dimensional Mixer can make two motions at the same time.One is the rotation of the cylinder and the other is swinging of the cylinder along the swinging rack.Materials to be mixed will be rotated when the cylinder is rotating,and will be mixed from left to right and vice versa when the cylinder is swinging.As a result of these two motions,materials Mixer is suitable for mixing of all powder and granule materials.



Technical Parameters

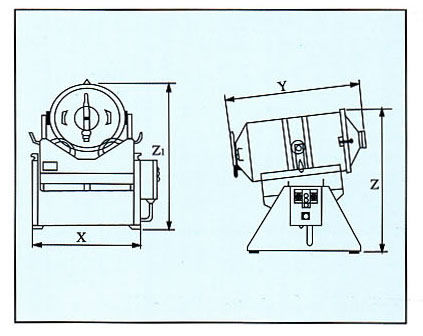

Item Barrel volume(L) Loading capacity(L) Max Loading weinht(k/g ) Shake, rotate Views r/min Motor total power(kw) Dimensions X*Y*Z*Z(mm) Total weight (kg) Barrel weight (kg)
EYH-10 10 5 2.5 85 0.021 310*400*450*395 15 4
EYH-30 30 15 7.5 61 0.19 540*580*900*700 60 8.5
EYH-60 60 30 15 50 0.4 700*730*1100*990 115 15
EYH-150 150 75 37.5 37 1.15 800*1050*1450*1340 190 50
EYH-300 300 150 75 30 1.15 900*1350*1550*1400 340 60
EYH-600 600 300 150 23.6 3 1170*1640*2050*1910 1150 140
EYH-800 800 400 200 19.8 3 1320*1950*2150*2000 1600 200
EYH-1000 1000 500 250 19.8 3 1360*2040*2300*2170 1700 240
EYH-1500 1500 750 375 16.2 4.4 1580*2400*2550*2330 2000 320
EYH-2000 2000 1000 500 16.2 7.4 1740*2600*2770*2550 2600 430
EYH-3000 3000 1500 750 13.8 11 1800*2900*2950*2800 3500 620
EYH-4000 4000 2000 1000 12.8 13 1970*3300*3300*2950 4100 700
EYH-6000 6000 3000 1500 11.2 18.5 2300*2900*3800*3100 6100 1100
EYH-8000 8000 4000 2000 10.4 22 2540*4100*4050*3650 7900 1450
EYH-10000 10000 5000 2500 9 30 2900*4500*4400*4020 9500 1650
