Descriptions

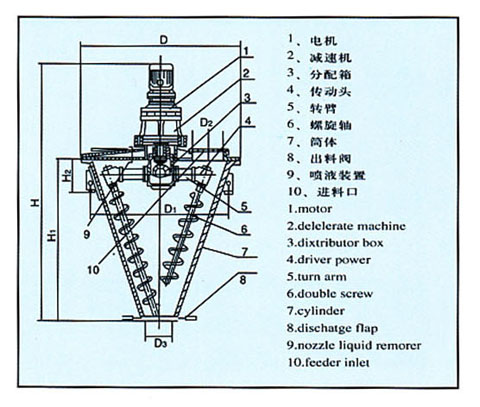

◆The material is made to conduct a compound motion in the cone because of the rotation and revlution of the screws The effected mtions include
(1)The revolution ofthe screw along the wall making the material conduct a circumffetial motion
(2)The rotation of the scerw making the material rise along the scerw from the cone botton
(3)The compound motion of the ratation and revolution of the screws making partial material be absorbed into the screewcylindroid meanwhile，under the action of centrifugal tbrce．the partial material in the screw cylindroid discharges radialy
(4)The risd mterial drops under its sole weight，the four kinds of motions effect convection、shearing、diffusion in the cone，thus quich and mixing can be achieved

Features
◆This model of machine can be equipped with single screw、double screws、triscrews
◆It can be equpped with flying—entter aditionally，so as to meet the requivements for speciaal technology
◆The discharge valve adopts two ways．one is manual or the other is pheumatical
◆The power of motor can be enlarged for special matecial(Strengthening Type )

Application
◆It is suitable for chemical industry、pharmaceutical industry、pesticide、dyestuff、petroleum industry、metallurgical industry construction material and etc Such as in the mixing、reaction、drying、cooling of powder(solid—solid)、powder and liquid(solid—liquid)、liquid an liquid(1iquid—liquid)

Technical Parameters
