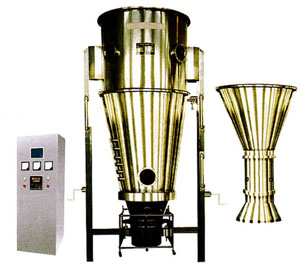

DLB Series Multi-Function Granulator& Coater



Descriptions
DLB Series Multi-Function Granulator & Coater is a new type of solid ingredients/ material preparation equipment, that integrates granulating, coating, fluidizing and rotating granulating together. It is mainly applicable for granulating, pill making and coating in pharmaceutical, chemical, foodstuff and so on industries, such as granules to be pressed to tablets, or to be filled into capsules, granules for other Chinese and Western Medicine, solid drinks, especially controlled release capsules and granules.

Features
Power material grain maiing and coating Coating for chinese tradion
Power material grain maiing and coating

Technical Parameters

spec

DLB-

5

15

30

60

120

300

500

max working capacity(L)

up spray

22

45

100

420

620

1100

2000

down spray

15

35

90

400

550

900

1600

electric heater power (kw)

21

27

45

81

135

234

315

range of temperature (°C)

0-120automatically regulated

consume of steam (kg/h)

60

100

180

220

366

600

1000

power of fan (kw)

5.5

11

15

22

30

55

75

amount of compressed air

0.6

0.6

0.9

1.1

1.3

3.0

4.0

weight (kg)

1450

1800

2650

3450

4000

6500

8000
