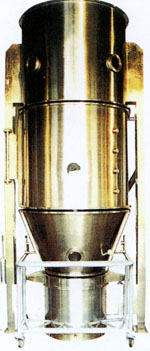

PGL Series Spray Drying Granulaor
|
|
| |
Features
◆Integrate spraying，drying/fluid granulating in a body and realize granulating in one step．
◆Using the process of spraying，it is particularly suitable for micro auxiliary raw materials and thermal sensitive raw materials．Its power is 1-2 times that FL boiling granulating machine．
◆The final moisture of products can reach 0.1%．It is equipped with powder returning device．The rate of granule is more than 95%．0.2～2 mm of granule
◆The improved inner roller multi—-flow atomizer in design in design can treat the liquid extract with 1.3g/cm3 of gravity．
Pharmaceutical
◆Fluidextract，vitamin，animal glue，vegetable glue，barm，protease，lipasee，amylase and so on
Foodstuff
Mile and egg products
Vegetable juices such as rich fat milk powed~baby meal，egg white(vitelling) and so on．
Check extract，coffee，instant tea，protein of fish or pork，protein of potato，soybean or earthpea and so on．
◆Sugar
Maize，maize starch，glucose，pectin，potassium sorbate，maltose and so on
Detergent
Emulsifying agent，brightener，dispersant，soda ash，soap powder，ordinary washing powder，high effective washing powder and so on
◆Chemical industry
Dyestuff,pigment，resin，white carbon black，ceramics and so on．
Technical Parameters |
| Item |
unit
type |
PGL-3B |
PGL-5B |
PGL-10B |
PGL-20B |
PGL-30B |
PGL-80B |
PGL-120B |
| fluid extract |
min |
kg/h |
2 |
4 |
5 |
10 |
20 |
40 |
55 |
| max |
kg/h |
4 |
6 |
10 |
30 |
40 |
100 |
140 |
| boiling capacity |
min |
kg/batch |
2 |
6 |
15 |
30 |
60 |
100 |
150 |
| max |
kg/batch |
6 |
15 |
30 |
80 |
160 |
250 |
450 |
| specific gravity of liquid |
kg/L |
≤1.30 |
| volume of material container |
L |
26 |
50 |
220 |
420 |
620 |
980 |
1600 |
| dia.of container |
mm |
400 |
550 |
770 |
1000 |
1200 |
1400 |
1600 |
| power of induced-draft fan |
kw |
4.0 |
5.5 |
7.5 |
15 |
22 |
30 |
37 |
| power of induced-draft fan |
kw |
0.35 |
0.75 |
0.75 |
1.20 |
2.20 |
2.20 |
4 |
| steam |
consumed amount |
kg/h |
40 |
70 |
99 |
210 |
300 |
366 |
465 |
| pressure |
Mpa |
0.40-0.60 |
| prwer of electroc heater |
kw |
9 |
15 |
21 |
25.5 |
51.5 |
60 |
75 |
| compressed air |
consumed amount |
m3/min |
0.9 |
0.9 |
0.9 |
0.9 |
1.1 |
1.3 |
1.8 |
| pressure |
Mpa |
0.30-0.60 |
| temperature of operation |
℃ |
automatic adjustment from room temperature to 130℃ |
| moisture of product |
% |
≥0.5 decided in accordance with detaied material |
| yield of material |
% |
≥99 |
| noise of equiment |
dB |
＜70 |

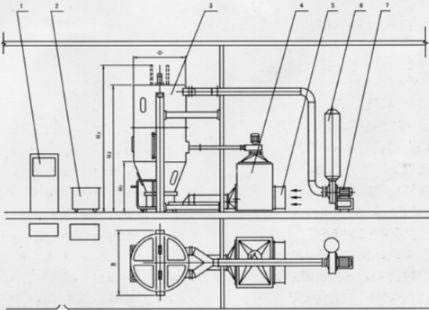

| size of main machine |
Ø |
mm |
400 |
550 |
770 |
1000 |
1200 |
1400 |
1600 |
| H1 |
mm |
940 |
1050 |
1070 |
1180 |
1620 |
1620 |
1690 |
| H2 |
mm |
2100 |
2400 |
3150 |
3150 |
3630 |
4120 |
5050 |
| H3 |
mm |
2450 |
2750 |
3700 |
3700 |
4100 |
4770 |
5800 |
| B |
mm |
740 |
890 |
1420 |
1420 |
1600 |
1820 |
2100 |
|
|
|
| |
|
|
|
|
|
