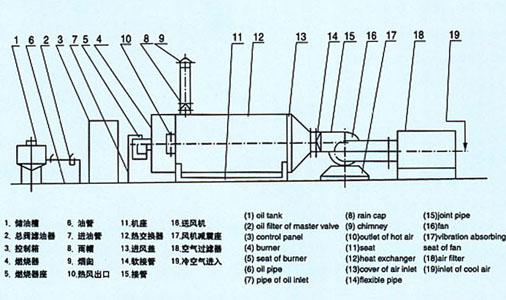

RLY Series Oil or Gas fuel Hot Air Furnace
|
|
| |
Principle
◆The fuel is burnt at firebox and the high temperature is produced．The quantity will conduce to airto be heated through heat exchange device．Through heat exchange，the temperature of air is dropped to less than 250。C and the air will be discharged through fan．The air to be heated is sent to hot air furnace through distribution blow fan．After absorbed heat to the rated value，the air will be sent vent of hot air．When the temperature of hot air reaches the rated upper limit，tie burner can stop or turn to small fire automatically，When the temperature of hot air drops to the rated low limit，the burner can burn or turn to big fire automatically．
Technical Parameters |
model |
output calorie(KJ/h) |
output air amount(m3/h) |
output temperature(0C) |
oil consumption(kg/h) |
type of combustor |
RLY2.5 |
1.045-105 |
1500-560 |
60-200 |
4-5 |
M4 |
RLY4 |
1.672-105 |
3500-930 |
60-200 |
6-7 |
M8 |
RLY8 |
3.344-105 |
5600-1480 |
60-200 |
11.5-13.5 |
M12 |
RLY15 |
6.270-105 |
12000-2160 |
60-250 |
21.5-25 |
M20 |
RLY30 |
12.54-105 |
25000-4330 |
60-250 |
43-50 |
MP35AB |
RLY40 |
16.72-105 |
28000-5600 |
60-250 |
57-67 |
MP45AB |
RLY60 |
25.08-105 |
45000-8660 |
60-250 |
86-100 |
MP80AB |
RLY80 |
33.44-105 |
83000-12500 |
60-350 |
114-135 |
MP130AB |
RLY160 |
66.88-105 |
134400-230000 |
60-350 |
228-270 |
MP200AB |
RLY200 |
83.60-105 |
170000-28000 |
60-350 |
286-334 |
MP300AB |
|
|
|
| |
|
|
|
|
|
