Structural characteristics and technical performance
◆The device adapts high effect ceramics wave filler．The body of disillation tower is made of stainless steel．In this way it can prevent from the phenomenon of filler block caused by Structural characteristics and technical performance scrap iron and its life is prolonged All parts that will contact ethanol in the device such as condensor，buffer tank，cooling snake pipe are made of stainless steel in order to guarantee that the finished product，ethanol，is not polluted Model W still may use disassembled U type heating pipe．When maintenance．it can be removed out to the still So it is very convenievt to clean the outer wall of heating pipe and the inner wall of still
◆In Model ZW．the indirect heating still is omitted The condensor adapts calandria heat exchanger．Of course the screw plate heat exchange and coil pipe cooler can also be provided as request．When adapt coil pipe cooler,the buffer tank．
Applications
◆The device is suitable for recovering dilute ethanol of pharmaceutical industry．foodstuff industry．1ight industry．chemical industry and SO on．It is also suitable for distilling
solvents such sa methanol and SO on Using this device，about 30。of dilute ethanol can be distlled into 90-95。sa request．If the finished product has higher requiement to alcohol
content，the ration of reflex should be increased But the output will be decreased．

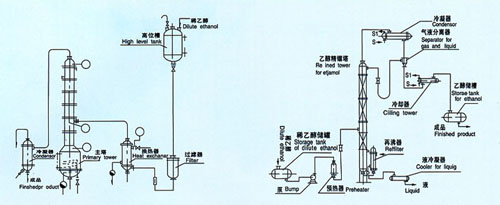

Constitutes of device
◆Model ZT has two specifications，Each specification is equipped with distillation tower still，condusator，buffe~tank，measurer of specific gravity．Other auxiliary equipment and
meters and instruments such as measure tank，storage tank，pmp，rotameter and temperature indicator should be prepared by customer．Our company can also provide through
additional process or order instead of custoomer as request．
Technical parameters
◆Concentration of raw material to be fed in：30％～80％
◆Concentration of raw material to be fed in：90％～95％
◆Ratio of reflex：R=13(affirmed in accirdance with the concen tration of raw aterialto befein andtaken outl
◆Concentration of ethanol in residual liquid to be discharged：Model T≤3%，ModelZT≤l％
◆Productive capacity(kg／h)：see the list of productive capacity
Technical Parameters |
