MC Series Plus Dust Filter With Cloth Bag

Descriptions

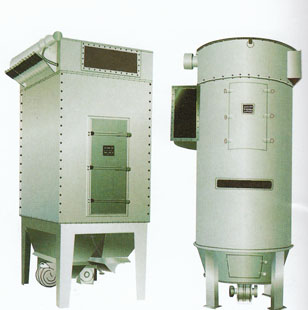

On the basis of MC—I type．the square type pulse dust filter with cloth bag MC—II is the amended and improved one．In addition．To the advantages that I type is high in the dust removing efficiency，big in the air capacity，stable in the performance，easy in operation and maintenance，MC—II has the beeter result than MC—I．Such as：it is not easy to build up the powder and its application is wide and so on．The device is widely used for the ventilation，dust removing and powder restoration in the grain，food，feed，metallurgical，chemical，building material，medical and other industries．

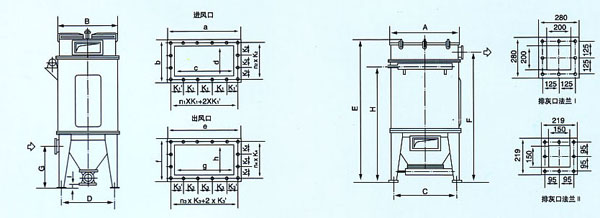

sketch of installation

Technical Parameters

Model	MC24	MC36	MC48	MC60	MC72	MC84	MC96	MC120
filering area (m2)	16	27	36	45	54	63	72	90
quantity of filtering bag,piece	24	36	48	60	72	84	96	120
quantity of pulse valve,n pieces	4	6	8	10	12	14	16	20
trected amount of gas	2160-4300	3250-6480	4320-8630	5400-10800	6450-12900	7550-15100	8650-17300	10800-20800
efficiency of purification	99-99.5
resistance of dust catcher	1200-1500
air speed of filtration	2-4
dust concentration contained by air at inlet of dust catcher	3-15
pressure of air source for dust removing	≥0.4
consumed amount of compressed air for dust removing	0.1-0.3	0.1-0.5	0.2-0.7	0.2-0.8	0.25-1	0.3-1.2	0.3-1.3	0.4-1.7
weight	865	1060	1334	1490	1680	1942	2184	2594

type	concentration of contained dust	air speed	treated air amount	pressure loss	efficiency of dust removing	overall dimension	quantity of filtering bag	filtering area	pulse time	spraying and blowing pressure	spaying and blowing air amount	pulse period
MC-24A	5-10	2-4	2160-4300	1200-1500	99	1000×1400 ×3690	24	18	0.12-0.15	0.5-0.7	3.6	30-60
MC-24B	5-10	2-4	2160-4300	1200-1500	99	1000×1400 ×3690	24	18	0.12-0.15	0.5-0.7	3.6	30-60
MC-36	5-10	2-4	3250-6480	1200-1500	99	1000×1400 ×3690	36	27	0.12-0.15	0.5-0.7	5.4	30-60
MC-48	5-10	2-4	4320-8630	1200-1500	99	1800×1400 ×3646	48	36	0.12-0.15	0.5-0.7	7.2	30-60
MC-60	5-10	2-4	5400-10800	1200-1500	99	2200×1400 ×3646	60	45	0.12-0.15	0.5-0.7	9.0	30-60
MC-72	5-10	2-4	6450-12900	1200-1500	99	2600×1400 ×3646	72	54	0.12-0.15	0.5-0.7	10.8	30-60
MC-84	5-10	2-4	7550-15100	1200-1500	99	3000×1400 ×3646	84	63	0.12-0.15	0.5-0.7	12.6	30-60
MC-96	5-10	2-4	8650-17300	1200-1500	99	3400×1400 ×3646	96	72	0.12-0.15	0.5-0.7	14.4	30-60
MC-120	5-10	2-4	10800-20800	1200-1500	99	4200×1400 ×3646	120	90	0.12-0.15	0.5-0.7	18.0	30-60

Size parameters

model	MC24	MC36	MC48	MC60	MC72	MC84	MC96	MC120
A	1000	1400	1800	2200	2600	3000	3560	4360
B	1450
C	780	1180	1600	2000	2400	1400+1400	1670+1670	2080+2080
D	1230
E	3660
F	3410
G	1000
H	3050
I	140
a	476	576	876	876	1076	676	776	876
b	336	376
c	400	500	800	800	1000	600×2	700×1	800×2
d	260	300 300×2
e	576	576	876	876	1076	1276	1326	1436
f	276	376
g	500	500	800	800	1000	1200	1250	1360
h	200	300
k1×h1 k1×2	110×4 =440	108×5 =540	120×7 =840	120×7 =840	120×7+100×2 =1040	110×4+100×2 =640	110×5+95×2 =740	120×7 =840
k2×n2	150×2=300	113.3×3=340
k3×n3 k3*2	108×5 =540	108×5 =540	120×7 =840	120×7 =840	120×7+ 100×2 =1040	124×10 =1240	120×9+ 105×2 =1290	120×10+ 100×2 =1400
k4*n4	120×2=240	113.3×3=340
排灰口法兰	I	I	II	II	II	II	II	II
