 SL Swirl-flow type oil cooler
|
 |
Conditions of Use: Input Pressure of oil cooler<1MPa, Temperature<70 degree. Water temperature<30 degree. Oil viscosity<50Pa.s, Oil-water flow ratio=1:1.5: Oil Temperature<8 degree, Heat transfer coefficient 300Kcal/m2·h· degree.

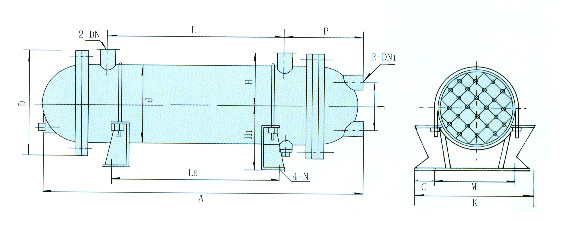

Technical Parameter, Specification and Size of SL Swirl-flow type oil cooler (picture 1)
Model |
A |
d |
L |
L5 |
D |
J |
P |
H |
M |
K |
DN |
DN1 |
B |
C |
N |
H1 |
Weight
(kg) |
SL-303 |
309 |
87.9 |
152 |
107 |
120 |
45 |
81 |
62 |
58 |
95 |
1" |
3/4" |
35 |
15 |
11*20 |
87 |
5.5 |
SL-304 |
381 |
224 |
179 |
6 |
SL-305 |
453 |
298 |
251 |
6.5 |
SL-307 |
597 |
440 |
395 |
7 |
SL-309 |
741 |
584 |
639 |
8 |
SL-311 |
885 |
728 |
883 |
9 |
SL-408 |
469 |
114.3 |
284 |
240 |
150 |
60 |
95 |
87 |
110 |
160 |
5/4" |
3/4" |
50 |
20 |
18*22 |
125 |
13 |
SL-411 |
613 |
428 |
384 |
16 |
SL-415 |
757 |
572 |
528 |
18 |
SL-418 |
901 |
716 |
672 |
21 |
SL-421 |
1045 |
850 |
816 |
24 |
SL-509 |
484 |
139.8 |
270 |
206 |
180 |
70 |
121 |
105 |
120 |
180 |
3/2" |
1" |
50 |
20 |
18*25 |
180 |
24 |
SL-518 |
588 |
405 |
342 |
26 |
SL-526 |
854 |
622 |
558 |
31 |
SL-534 |
1070 |
838 |
774 |
36 |
SL-542 |
1286 |
1054 |
990 |
42 |
|
|
|
|
|
