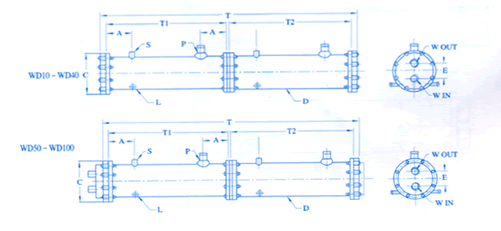

 Water-cooled condenser (double-unit)
Model |
Heat exchanger |
Size (mm) |
Weight (Kg) |
(Kw) |
RT |
D |
T1 |
T2 |
T |
A |
C |
E |
RC17×2 |
17.6×17.6 |
5+5 |
168 |
485 |
485 |
1085 |
90 |
235 |
110 |
60 |
RC26×2 |
26.4×26.4 |
7.5+7.5 |
168 |
610 |
610 |
1334 |
90 |
235 |
110 |
70 |
RC35×2 |
35.2×35.2 |
10+10 |
168 |
826 |
826 |
1838 |
90 |
235 |
110 |
81 |
RC44×2 |
44×44 |
2.5+12.5 |
168 |
915 |
915 |
1945 |
90 |
235 |
110 |
92 |
RC52×2 |
52.8×52.8 |
15+15 |
219 |
820 |
820 |
1755 |
90 |
285 |
118 |
127 |
RC20×2 |
70.3×70.3 |
20+20 |
219 |
915 |
915 |
1955 |
100 |
285 |
118 |
155 |
RC87×2 |
87.9×87.9 |
25+25 |
273 |
915 |
915 |
1955 |
100 |
285 |
118 |
181 |
RC105×2 |
105.5×105.5 |
30+30 |
273 |
915 |
915 |
1952 |
100 |
360 |
130 |
247 |
RC123×2 |
123.1×123.1 |
35+35 |
273 |
1016 |
1016 |
2160 |
100 |
360 |
130 |
274 |
RC140×2 |
140.7×140.7 |
40+40 |
273 |
1080 |
1080 |
2288 |
100 |
360 |
130 |
300 |
RC175×2 |
175.9×175.9 |
50+50 |
325 |
1220 |
1220 |
2620 |
100 |
406 |
157 |
345 |
Model |
Inlet and outlet diameter |
S |
P |
L |
W |
FPT |
FPT |
RC17×2 |
1/4 |
5/8 |
5/8 |
2 |
RC26×2 |
1/4 |
7/8 |
5/8 |
2 |
RC35×2 |
1/4 |
7/8 |
5/8 |
2 |
RC44×2 |
1/4 |
1-1/8 |
5/8 |
2 |
RC52×2 |
3/8 |
1-1/8 |
7/8 |
2-1/2 |
RC70×2 |
3/8 |
1-1/8 |
7/8 |
2-1/2 |
RC87×2 |
3/8 |
1-3/8 |
7/8 |
2-1/2 |
RC105×2 |
3/8 |
1-5/8 |
1-1/8 |
3 |
RC123×2 |
3/8 |
1-5/8 |
1-1/8 |
3 |
RC140×2 |
3/8 |
1-5/8 |
1-1/8 |
3 |
RC175×2 |
3/8 |
1-7/8 |
1-3/8 |
4 |
|
|
|
|
