 尺寸表
|
代号\规格L
|
50
|
100
|
200
|
300
|
500
|
1000
|
1500
|
2000
|
3000
|
5000
|
6300
|
8000
|
|
DN
|
500
|
600
|
700
|
800
|
900
|
1200
|
1300
|
1300
|
1600
|
1750
|
1750
|
2000
|
|
D1
|
270
|
270
|
300
|
350
|
350
|
400
|
400
|
400
|
450
|
500
|
500
|
500
|
|
D2
|
350
|
420
|
490
|
560
|
630
|
840
|
910
|
910
|
1120
|
1200
|
1200
|
1400
|
|
D3
|
φ40
|
φ40
|
φ50
|
φ65
|
φ65
|
φ80
|
φ80
|
φ80
|
φ95
|
φ95
|
φ95
|
φ95
|
|
D4
|
φ32x4
|
φ32x4
|
φ32x4
|
φ32x4
|
φ32x4
|
φ65x5
|
φ65x5
|
φ65x5
|
φ65x5
|
φ65x5
|
1900
|
2200
|
|
D5
|
600
|
700
|
800
|
900
|
1000
|
1300
|
1450
|
1450
|
1750
|
1900
|
2188
|
2533
|
|
D6
|
728
|
829
|
929
|
1029
|
1134
|
1488
|
1622
|
1622
|
1981
|
2188
|
550
|
510
|
|
D7
|
φ23
|
φ23
|
φ23
|
φ23
|
φ23
|
φ30
|
φ30
|
φ30
|
φ30
|
φ30
|
350
|
400
|
|
D8
|
/
|
/
|
/
|
/
|
/
|
/
|
507
|
507
|
614
|
350
|
|
|
|
D9
|
220
|
220
|
250
|
250
|
270
|
315
|
315
|
315
|
315
|
550
|
|
|
|
S
|
8
|
8
|
10
|
9
|
10
|
12
|
14
|
14
|
16
|
18
|
|
|
|
S1
|
6
|
6
|
6
|
6
|
7
|
8
|
8
|
8
|
10
|
10
|
|
|
|
S2
|
6
|
6
|
8
|
6
|
7
|
8
|
8
|
8
|
10
|
12
|
|
|
|
H
|
485
|
595
|
785
|
939
|
1138
|
1270
|
1536
|
1815
|
1810
|
2409
|
2900
|
2878
|
|
H1
|
300
|
350
|
380
|
470
|
535
|
500
|
600
|
500
|
600
|
768
|
700
|
1000
|
|
H2
|
265
|
302
|
341
|
360
|
400
|
481
|
505
|
505
|
580
|
627
|
627
|
720
|
|
H3
|
985
|
985
|
1005
|
1154
|
1154
|
1276
|
1276
|
1276
|
1316
|
1451
|
1546
|
1620
|
|
H4
|
220
|
270
|
250
|
350
|
355
|
280
|
360
|
310
|
310
|
378
|
378
|
400
|
|
H5
|
/
|
/
|
/
|
/
|
/
|
/
|
690
|
700
|
937
|
1242
|
1742
|
1800
|
|
L
|
2100
|
2230
|
2424
|
2927
|
3172
|
3370
|
3880
|
4160
|
4185
|
5000
|
5520
|
5620
|
|
n-φ
|
4-φ22
|
4-φ22
|
4-φ22
|
4-φ23
|
4-φ23
|
4-φ28
|
4-φ28
|
4-φ28
|
4-φ28
|
4-φ28
|
|
|

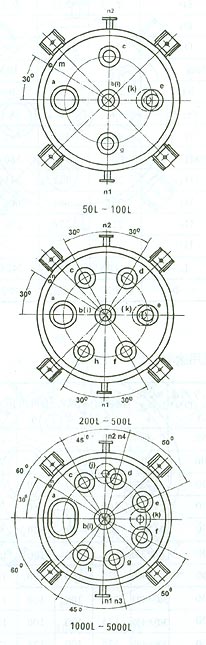

管口及用途表
| 代号用途DN 规格L\ |
人孔手孔 a |
搅拌孔b |
测温孔c |
备用孔d |
视镜孔e |
备用孔f |
备用孔g |
视镜孔备用孔h |
放料孔i |
进出口j |
冷凝水口k |
放气孔m |
进出口 n1-3 |
进出口 n4 |
|
50
|
80
|
70
|
70
|
/
|
70
|
/
|
70
|
/
|
70
|
/
|
20
|
G1/2
|
20
|
/
|
|
100
|
80
|
70
|
70
|
/
|
70
|
/
|
70
|
/
|
70
|
/
|
20
|
G1/2
|
20
|
/
|
|
200
|
125
|
80
|
70
|
80
|
70
|
70
|
/
|
70
|
80
|
/
|
25
|
G1/2
|
25
|
/
|
|
300
|
125
|
100
|
70
|
80
|
70
|
70
|
/
|
70
|
80
|
/
|
25
|
G1/2
|
25
|
/
|
|
500
|
150
|
100
|
70
|
100
|
80
|
125
|
/
|
80
|
80
|
/
|
32
|
G1/2
|
32
|
/
|
|
1000
|
250x350
|
125
|
100
|
100
|
100
|
125
|
100
|
100
|
100
|
/
|
32
|
G1/2
|
32
|
/
|
|
1500
|
300x400
|
125
|
100
|
100
|
125
|
125
|
100
|
125
|
100
|
50
|
50
|
G1/2
|
40
|
/
|
|
2000
|
300x400
|
125
|
100
|
100
|
125
|
125
|
100
|
125
|
100
|
50
|
50
|
G1/2
|
40
|
/
|
|
3000
|
300x400
|
125
|
100
|
100
|
125
|
125
|
100
|
125
|
125
|
65
|
65
|
G1/2
|
50
|
/
|
|
5000
|
300x400
|
125
|
100
|
125
|
125
|
150
|
125
|
125
|
125
|
65
|
65
|
G1/2
|
50
|
70
|
|
6300
|
300x400
|
125
|
100
|
125
|
125
|
125
|
125
|
125
|
125
|
65
|
65
|
G1/2
|
50
|
65
|
|
8000
|
300x400
|
125
|
125
|
125
|
125
|
125
|
150
|
125
|
125
|
65
|
65
|
G1/2
|
65
|
65
|
技术特性表
| 代号\规格L |
50 |
100 |
200 |
300 |
500 |
1000 |
1500 |
2000 |
3000 |
5000 |
|
全容积 L
|
71
|
128
|
254
|
314
|
580
|
1250
|
1780
|
2160
|
3380
|
5600
|
|
换热面积 m2
|
0.34
|
0.66
|
1.26
|
1.75
|
2.76
|
4.54
|
5.80
|
7.02
|
8.61
|
13.0
|
|
搅拌转速 r/min
|
85
|
85
|
85
|
63
|
63.85
|
63.85
|
63
|
63.85
|
63.85
|
63
|
|
电机功率 KW
|
0.8
|
0.8
|
1.1
|
3.0
|
3.0
|
4
|
4
|
4
|
5.5
|
7.5
|
|
重量 Kg
|
270
|
342
|
573
|
630
|
846
|
2015
|
2167
|
2500
|
3500
|
4793
|
 92标图表
尺寸表
| 代号\规格L |
50 |
100 |
200 |
300 |
500 |
1000 |
1500 |
2000 |
3000 |
5000 |
|
DN
|
500
|
600
|
700
|
800
|
900
|
1200
|
1300
|
1450
|
1600
|
1750
|
|
D1
|
/
|
/
|
/
|
/
|
/
|
400
|
/
|
400
|
480
|
480
|
|
D2
|
350
|
420
|
490
|
560
|
630
|
840
|
910
|
1020
|
1120
|
1220
|
|
D3
|
40
|
50
|
65
|
65
|
65
|
80
|
80
|
80
|
95
|
95
|
|
D4
|
32
|
32
|
32
|
32
|
50
|
65
|
65
|
65
|
65
|
80
|
|
D5
|
600
|
700
|
800
|
900
|
1000
|
1300
|
1450
|
1600
|
1750
|
1900
|
|
D6
|
728
|
829
|
929
|
1048
|
1148
|
1488
|
1695
|
1850
|
2045
|
2196
|
|
D7
|
25
|
25
|
25
|
25
|
25
|
30
|
30
|
30
|
36
|
36
|
|
D8
|
/
|
/
|
/
|
/
|
/
|
/
|
510
|
510
|
510
|
510
|
|
D9
|
250
|
250
|
270
|
270
|
270
|
350
|
350
|
350
|
400
|
400
|
|
S
|
8
|
8
|
10
|
10
|
10
|
12
|
14
|
14
|
16
|
18
|
|
S1
|
6
|
6
|
6
|
6
|
6
|
8
|
8
|
10
|
10
|
10
|
|
S2
|
6
|
6
|
8
|
8
|
8
|
10
|
10
|
10
|
12
|
12
|
|
H
|
400
|
500
|
700
|
1000
|
1000
|
1200
|
1400
|
1450
|
1810
|
2410
|
|
H1
|
300
|
350
|
380
|
400
|
400
|
500
|
650
|
650
|
700
|
700
|
|
H2
|
305
|
315
|
355
|
440
|
440
|
500
|
525
|
563
|
610
|
640
|
|
H3
|
985
|
985
|
1005
|
1150
|
1150
|
1300
|
1300
|
1300
|
1350
|
1475
|
|
H4
|
210
|
240
|
250
|
270
|
270
|
270
|
310
|
310
|
310
|
310
|
|
H5
|
/
|
/
|
/
|
/
|
/
|
/
|
640
|
640
|
790
|
1390
|
|
H6
|
100
|
100
|
100
|
100
|
100
|
100
|
100
|
100
|
130
|
130
|
|
L
|
1830
|
1940
|
2195
|
2700
|
2700
|
3140
|
3365
|
3450
|
3920
|
4665
|
|
4-M
|
20
|
20
|
20
|
24
|
24
|
24
|
24
|
24
|
27
|
27
|
技术特性表
| 代号\规格L |
50 |
100 |
200 |
300 |
500 |
1000 |
1500 |
2000 |
3000 |
5000 |
|
全容积 L
|
70
|
130
|
250
|
370
|
590
|
1240
|
1710
|
2190
|
3380
|
5450
|
|
换热面积 m2
|
0.54
|
0.84
|
1.5
|
1.9
|
2.6
|
4.50
|
5.2
|
6.61
|
9.21
|
13.35
|
|
搅拌公称转速 r/min
|
63、80、125
|
|
电机功率 KW
|
0.55
|
0.75
|
1.1
|
1.5
|
2.2
|
3
|
3
|
4
|
5.5
|
5.5
|
|
4(叶轮)
|
4(叶轮)
|
7.5(叶轮)
|
|
重量 Kg
|
376
|
442
|
584
|
745
|
904
|
1825
|
2250
|
2705
|
3680
|
5165
|
管口及用途表
|
代号用途DN
\
规格L
|
备用口a |
备用口b |
备用口c |
备用口d |
搅拌孔e |
放料口f |
放气口g |
放净口k |
进出口 L1-3 |
进出口(装喷咀) n1-2 |
测温孔T |
人孔手孔视镜 M/S1 |
灯孔S2 |
|
50
|
65
|
/
|
/
|
/
|
65
|
65
|
G3/8"
|
G1/2"
|
20
|
/
|
65
|
手孔80(带视)
|
65
|
|
100
|
65
|
/
|
/
|
/
|
80
|
65
|
G3/8"
|
G1/2"
|
20
|
/
|
80
|
手孔80(带视)
|
65
|
|
200
|
80
|
65
|
/
|
/
|
80
|
80
|
G3/8"
|
G1/2"
|
25
|
/
|
80
|
手孔125(65)
|
65
|
|
300
|
80
|
65
|
/
|
/
|
100
|
80
|
G3/8"
|
G1/2"
|
25
|
/
|
80
|
手孔125(65)
|
65
|
|
500
|
100
|
125
|
/
|
/
|
100
|
80
|
G3/8"
|
G1/2"
|
32
|
/
|
125
|
手孔200(65)
|
65
|
|
1000
|
100
|
125
|
100
|
100
|
125
|
100
|
G3/8"
|
G1/2"
|
32
|
/
|
150
|
350x250(125)
|
100
|
|
1500
|
100
|
125
|
100
|
125
|
125
|
100
|
G3/4"
|
G1/2"
|
40
|
50
|
150
|
400x300(125)
|
125
|
|
2000
|
100
|
125
|
100
|
125
|
125
|
100
|
G3/4"
|
G1/2"
|
40
|
50
|
150
|
400x300(125)
|
125
|
|
3000
|
100
|
125
|
100
|
125
|
150
|
125
|
G3/4"
|
G1/2"
|
50
|
65
|
150
|
400x300(125)
|
125
|
|
5000
|
125
|
150
|
125
|
125
|
150
|
125
|
G3/4"
|
G1/2"
|
65
|
65
|
200
|
400x300(125)
|
125
|
|
|

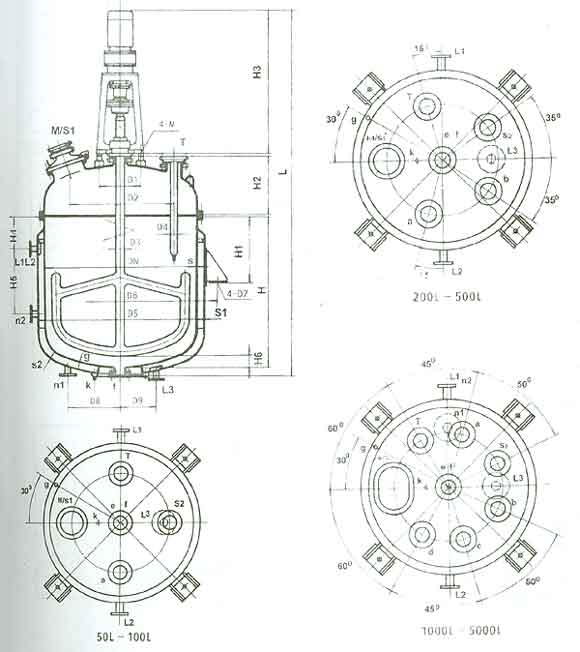

搪玻璃反应罐的主要尺寸
