This is filter type centrifugal machine with manual bottom upper unloading, discontinuous operation. It is applicable to the separation of floating liquid which contains 5-60% solid phase(particle, crystal or staple fibre) or the particle with 0.5-1.5mm. The machine is of simple construction, convenient operation, procedures can be adjusted at choice, the filter residue can be sufficiently washed, thesolid-phase particles are not easily broken with good adaptability. Labor intensity has been reduced for its bottom discharge. It is widely used in the industries of chemicals, light industry, food, pharmacy-manufactruing, textile, metallurgical etc..

Adjustable speed motor drives revolving drum to revolve and adjust the rotating speed to middle speed. Material is added from the top of revolving drum and spread evenly on the wall of the drum. Liquid phase is discharged through filter cloth and filter opening in the drum wall by centrifugal action. Solid phase is left in the drum. Revolving drum revolves at a low speed and scraper scrapes the solid phase from drum wall and discharge at the bottom of centrifuge.

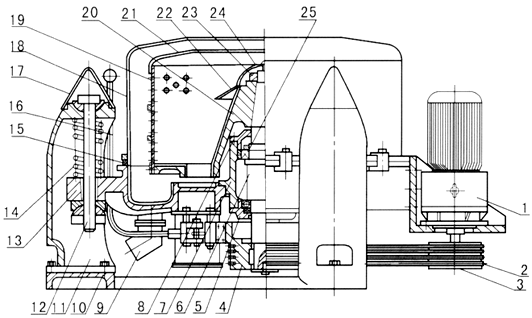

Structural diagram of model SX centrifuge

1..Electric motor	2.Triangular belt	3.Drive wheel	4.Driven wheel	5.Bottom bearing cover
6.Principal axis	7.Bearing block	8.Upper bearing cover	9.Drainage pipe	10.Cam stand
11.Zoccola	12.Rocking beam	13.Bottom head	14.Buffer spring	15.Seal ring
16.Brake handle	17.Zoccola cover	18.Outside shell	19.Barrel of revolving drum	20.Bottom of revolving drum
21.Liquid preventing board	22.Feed of raw mix	23.Mainshaft nut	24.Principal axis cover

Main specification and technical index

Type	Revolving drum					Separation factor	Power of electric machiner kw	Weight of the whole machine kg	External dimensions (LengthWidthheight) mm
	Diameter mm	Height mm	Working volume L	Maximum weight of discharge kg	Rotating speed r/min
SX800	800	350	90	120	0-1200	640	5.5	1100	195013801100
SX1000	1000	350	130	170	0-1000	560	7.5	1700	215015501050
SX1200	1200	400	200	260	0-800	430	11	2300	230017001100

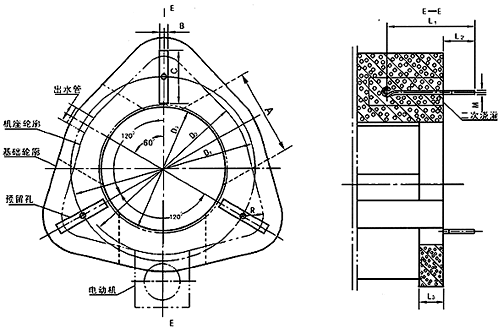

Foundation drawing of Model SXCentrifuge

Main installation dimension(unit:mm)

Type	A	B	C	D1	D2	D3	R	L1	L2	L3	M
SX800	800	130	360	1247	1200	900	150	500	100	160	20
SX1000	1000	130	400	1443	1320	950	158	500	100	200	22
SX1200	1000	130	450	1617	1550	1100	150	600	130	200	22

Guide for placing order

Material: Stainless steel, titanium alloy, carbon steel or rubber coating, plastic coating etc.
Driving means:Common asynchronous motor, explosibility separation asynchronous motor, electromagnetic varispeed motor or frequency control etc

Note: The above technical parameter should refer to the product operation instructions. This product is covered with responsibility risk of PICC.
