Glass lining tubular exchanger

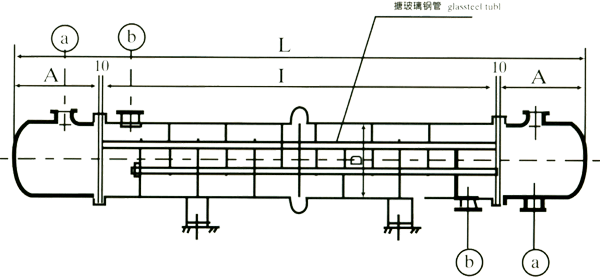

Size table
|
Model
|
Heat exchange area
|
D
|
L
|
A
|
I
|
dA
|
dB
|
Weight
|
|
Type
|
Tube external side (m2)
|
Tube internal side (m2)
|
(mm)
|
(mm)
|
(mm)
|
(mm)
|
(mm)
|
(mm)
|
Weight (kg)
|
|
EG-3
|
3.6
|
2.9
|
DN325
|
2260
|
370
|
1500
|
DN80
|
DN50
|
320
|
|
EG-5
|
4.8
|
3.9
|
DN325
|
2760
|
370
|
2000
|
DN80
|
DN50
|
380
|
|
EG-6
|
6.0
|
4.9
|
DN400
|
2350
|
430
|
1500
|
DN80
|
DN50
|
500
|
|
EG-8
|
8.0
|
6.5
|
DN400
|
2890
|
430
|
2000
|
DN80
|
DN50
|
580
|
|
EG-10
|
10.4
|
8.5
|
DN500
|
2950
|
460
|
2000
|
DN100
|
DN80
|
800
|
|
EG-15
|
15.7
|
12.8
|
DN500
|
3950
|
460
|
3000
|
DN100
|
DN80
|
960
|
|
EG-20
|
22.8
|
18.5
|
DN600
|
4120
|
545
|
3000
|
DN125
|
DN100
|
1250
|
|
EG-25
|
26.6
|
21.6
|
DN600
|
4620
|
545
|
3500
|
DN125
|
DN100
|
1400
|
Design conditions
Design pressure:shell pass 0.6Mpa
or NP ,tube pass 0.6MPa or NP
Design temp.: shell pass 165 ,tube pass
180
Difference in temperature:( t)100
coefficient of heat transfer: (K)120-400W/m20C
|
