PRODUCTS INTRODUCTION

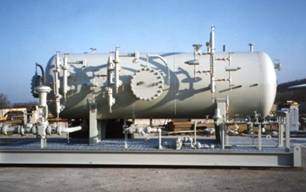

Free water knock out package in onshore/offshore oil field
£¨1£©Operating Principle and Characteristic
CEDEC can supply professional free water knock out package with horizontal and vertical vessel, which can separating the liquid into oil, gas and water three phase, the vessel dimension is determined by the process requirements. In order to separating the liquid into oil, water, and gad Phase(some times including sands), multi-phase separator , free water knock out or heater treater can be selected.
The normal components are consist of following:
1. Inter components
inlet diverter device
baffle plate
inlet cyclone separating pipe
mobile gas top
heater pipe
coalescer plate packs
foam remove equipment
fog catcher
vortex breaker
oil/water collecter
adjustable oil-water interface
sand-discharging system
2. Vessel Design
low pressure and middle pressure design
interface/delaminate discharge
oil mud and/ or solid discharge
critical point sample
general internal structure
disassembled heat pipe
disassembled stainless coalesce equipment
stainless sand jetting/discharging system
manhole for maintanence
vessel material under special/atrocious conditions
Design according to ASME standard Volume 8£¨or equivalent standard£©
Design according to GB150£¨or equivalent standard£©
Up to NACE requirement under acid conditions
Inter antisepsis coating
3. product scope
liquid flow range from 1500m3/d to 40000m3/d
inlet water content range from 20% to 98%
special design for heavy oil
£¨2£©Selection
along with the process of exploiting time, the content of free water in the oil increases, sometimes even up to 98%. When this phenomena occurs, the primary designed equipment will not meet the requirement for water separating. The horizontal vessel we designed can separating large amount of water from the oil and can decrease the load of down dream process equipment. This can make the operating system run smoothly. The Setting vessel also can treat large amount of associated gas, cushion inlet liquid and remove the sand or other solid. The heater pipe also can improve the free water separate from the free water knock out system.
£¨3£©Heavy Application
when treating heavy oil with the specific gravity from 6o to 12oAPI, the heavy viscosity, low liquid density and ill heat conductivity cause lots of particular problems. Moreover, the suspension exists in the inlet stream, sand jetting system should be adopted. We have developed a particular coalescer equipment for removing the suspension water and sand. We have much experience in the heavy oil treatment in Canada and China.
|
