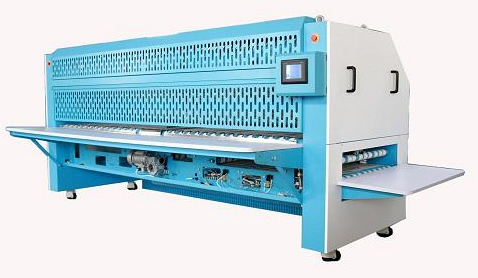

Sheet folding machine
Sheet folding machine features:
1. Sheet folding machine adopts automatic folding technique combining the blowing and knife.
2. Sheet folding machine Adopts large-screen liquid crystal display of intelligent control systems.
3. All Chinese interactive interface, free programming.
4. Sheet folding machine adopts two-wheeled two-speed meter long system, precise folding.
5. Sheet folding machine has large rotation speed adjustment range, and can match with a variety of ironing machine.
6. Sheet folding machine has self-diagnostic function, single-link signal detection techniques and perfect safety protection system.
7. Control the computer and output by relay without intermediate relay, accurate and easy for maintenance.
8. Sheet folding machine has automatically eliminate electrostatic devices and safety switches, safe and reliable.
Technical parameters:
| Name |
Unit |
D3000C5 |
| Maximum folding height |
mm |
3200 |
| Maximum folding width |
mm |
3000 |
| Work capacity |
m/min |
30 |
| Gas supply pressure |
mpa |
0.5～0.7 |
| Power supply |
V/P/Hz |
380/3/50 |
| Power consumption |
kw/h |
0.6 |
| Motor power |
kw |
1.5+0.55 |
| Supporting compressor displacement |
m3/min |
0.3 |
| Dimensions |
mm |
3723*2950*1990 |
| Whole machine weight |
kg |
1500 |
