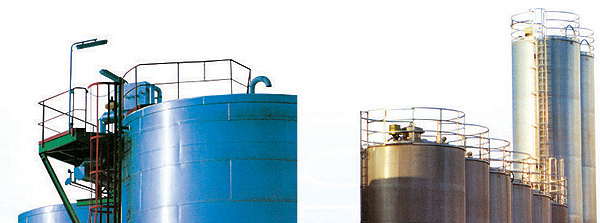

AYG series large-scale vertical steel storage tank, oil tank |
|
|
Application scope
AYG series large-scale vertical steel storage tank, oil tank storage mediums are water, diesel and less volatile similar oil or liquid.
Design conditions
Design pressure: Positive pressure: 1960Pa Negative pressure: 490Pa
Design temperature: -19℃≤t≤90℃
Basic wind pressure: 686Pa
Snow load: 441Pa
Seismic fortification intensity: 8 degree (near earthquake)
Site soil category: Category Ⅱ
Storage liquid density: ≤1000kg/m3
Corrosion allowance: 1mm
Tank size specification range
Nominal volume: 40~10000m3, nominal diameter: DN3600~31200mm. Oil tank basic parameters and dimensions see the table below.
AYG series storage tank, oil tank basic parameters and dimensions:
Model |
Volume (m3) |
Tank inner diameter D1
(mm) |
Tank bottom diameter D2
(mm) |
Height (mm) |
Main material |
Tank total mass
(kg) |
Nominal |
Calculated |
Wall height h1 |
Ceiling height h2 |
Total height H |
AYG-40 |
40 |
49 |
3600 |
3710 |
4800 |
388 |
5188 |
0235-A |
3630 |
AYG-60 |
60 |
72.7 |
4200 |
4320 |
5256 |
461 |
5717 |
0235-A |
5330 |
AYG-100 |
100 |
110 |
5200 |
5320 |
5256 |
566 |
5822 |
0235-A |
6685 |
AYG-200 |
200 |
217 |
6600 |
6720 |
6357 |
731 |
7088 |
0235-A |
10230 |
AYG-300 |
300 |
336 |
7750 |
7880 |
7137 |
875 |
5012 |
0235-A |
13475 |
AYG-400 |
400 |
460 |
8600 |
8730 |
7939 |
980 |
8917 |
0235-A |
16355 |
AYG-500 |
500 |
554 |
9000 |
9130 |
8717 |
1010 |
9717 |
0235-A |
18370 |
AYG-700 |
700 |
777 |
10200 |
10330 |
9517 |
1115 |
10632 |
0235-A |
22780 |
AYG-1000 |
1000 |
1100 |
11500 |
11630 |
10707 |
1253 |
11960 |
0235-A |
31615 |
AYG-2000 |
2000 |
2176 |
15800 |
15920 |
11107 |
1728 |
12835 |
0235-A |
53310 |
AYG-3000 |
3000 |
3443 |
18900 |
19030 |
12287 |
2063 |
14350 |
0235-A |
83070 |
AYG-5000 |
5000 |
5595 |
23700 |
23830 |
12700 |
2589 |
15289 |
0235-A |
119070 |
AYG-10000 |
10000 |
10907 |
31200 |
31350 |
14283 |
3407 |
17690 |
20/0235-A |
220915 |
|
|
 |
|
