Liquefied petroleum gas underground storage tank |
|
|

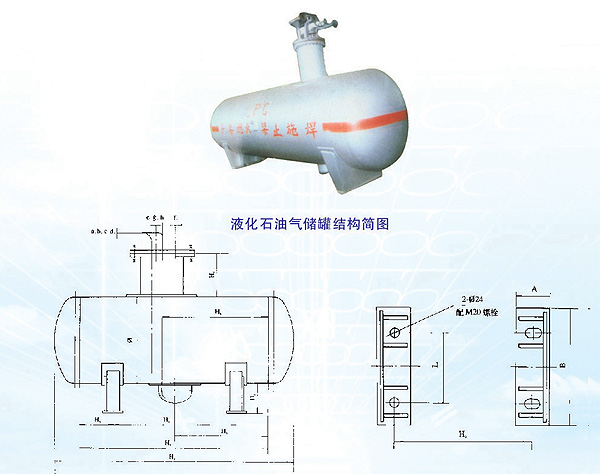

LPG storage tank shape and installation dimensions
Model |
Nominal volume (m3) |
Nominal diameter φ (mm) |
Tube length
H1 |
H2 |
H3 |
H4 |
H5 |
H6 |
H7 |
H8 |
L |
A/B |
DWG18-1400-5 |
5 |
1400 |
2700 |
2000 |
350 |
3504 |
1215 |
1350 |
700 |
200 |
840 |
170/1000 |
DWG18-1400-10 |
10 |
1600 |
4480 |
3680 |
400 |
5384 |
1330 |
1200 |
700 |
300 |
960 |
200/1120 |
LPG storage tank nozzle size
Model/Nozzle |
a |
b |
c |
d |
e |
f |
g |
h |
DWG18-1400-5 |
50 |
25 |
40 |
20 |
20 |
50 |
150 |
/ |
DWG18-1600-10 |
50 |
40 |
40 |
40 |
20 |
80 |
150 |
M27×2 |
Use |
Liquid phase inlet |
Liquid phase inlet |
Gas phase port |
Raffinate port |
Pressure gauge port |
Safety valve port |
Level gauge port |
Thermometer port |
Note: The above nozzle position, size and dimensions can be adjusted according to user requirements. |
|
 |
|
