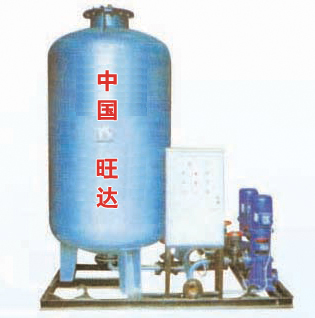

NZG series capsule-type automatic water supply equipment (domestic, fire booster, regulator device) |
|
|
|

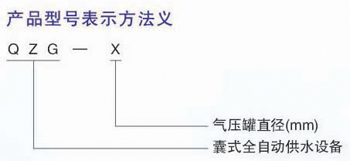

NZG series capsule-type automatic water supply equipment main technical parameters:
No. |
Model |
Design pressure (MPa) |
Total volume
m3 |
Regulatory volume
m3 |
Water inlet caliber
mm |
Device height and length
mm |
Tank diameter
mm |
Pressure tank weight(kg) |
1 |
NZG-600 |
0.6/10 |
0.40 |
0.15 |
80 |
2000 |
600 |
250.1 |
2 |
NZG-800 |
0.6/10 |
0.90 |
0.35 |
80 |
2500 |
800 |
325.7 |
3 |
NZG-1000 |
10 |
1.37 |
0.41 |
80 |
2680 |
1000 |
430.4 |
4 |
NZG-1200 |
10 |
2.30 |
0.59 |
100 |
2770 |
1200 |
575.2 |
8 |
NZG-1600 |
10 |
3.94 |
1.20 |
125 |
2956 |
1600 |
973.8 |
NZG seires 1-tank 2-pump mounting dimensions
Unit: mm
Tank model |
L |
L1 |
B |
H |
H1 |
D |
NZG-600 |
2500 |
450 |
700 |
2000 |
180 |
DN80 |
NZG-800 |
2700 |
550 |
900 |
2500 |
180 |
DN80 |
NZG-1000 |
2900 |
650 |
1100 |
2680 |
220 |
DN80 |
NZG-1200 |
3100 |
750 |
1300 |
2770 |
200 |
DN100 |
NZG-1400 |
3300 |
850 |
1500 |
2600 |
190 |
DN100 |
NZG-1600 |
3500 |
950 |
1700 |
2956 |
210 |
DN100 |

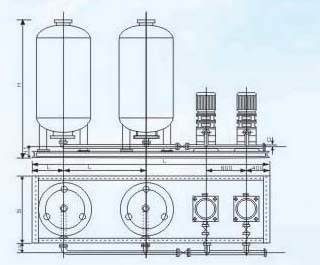

NGZ series 2-tank 2-pump mounting dimensions
Unit: mm
Tank model |
L |
L1 |
L2 |
B |
H |
H1 |
D |
NZG-600 |
3400 |
450 |
900 |
700 |
2000 |
180 |
DN80 |
NZG-800 |
3800 |
550 |
1100 |
900 |
2500 |
180 |
DN80 |
NZG-1000 |
4200 |
650 |
1300 |
1100 |
2680 |
220 |
DN80 |
NZG-1200 |
4600 |
750 |
1500 |
1300 |
2770 |
200 |
DN100 |
NZG-1400 |
5000 |
850 |
1700 |
1500 |
2600 |
190 |
DN100 |
NZG-1600 |
5400 |
950 |
1900 |
1700 |
2956 |
210 |
DN100 |
|
|
 |
|
