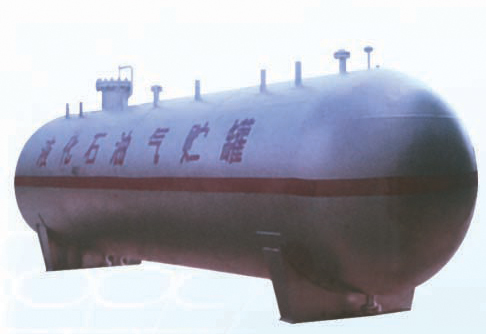

Liquefied petroleum gas storage tank

LPG storage tank shape and installation dimensions

Model	Nominal volume (m3)	Nominal diameter (φmm)	Tube length(H1)	H2	H3	H4	H5	H6	H7	A/B Support backplane size	Screw φ
WG18-1200-5	5	1200	4000	3400	300	4770	200	1670	720	170/880	24
WG18-1600-10	10	1600	4400	3680	360	5372	250	1800	960	200/1120	24
WG18-2000-20	20	2000	5650	4450	600	6851	250	2200	1260	220/1420	24
WG18-2200-30	30	2200	7100	6100	500	8376	250	2400	1380	240/1580	24
WG18-2400-40	40	2400	8000	6900	550	9590	250	2600	1520	240/1720	24
WG18-2600-50	50	2600	8480	7300	590	9988	250	2800	1640	300/1860	24
WG18-2800-80	80	2800	12000	10700	650	13790	250	3000	1800	300/2040	24
WG18-3000-100	100	3000	13200	9600	1800	14920	250	3200	1940	360/2180	28
WG18-3200-150	150	3200	17500	16000	750	19500	300	3400	2100	360/2340	28

LPG storage tank nozzle size

Model/Interface	a1-2	b	C1-2	d	e	f	g	h	i	j	k	l
WG18-1600-5	32	450	40	50	50	50	50	50	50	50	M20×15	G1/2”
WG18-1800-10	32	450	40	50	50	50	50	50	50	50	M20×15	G1/2”
WG18-2000-20	32	450	50	50	80	50	50	50	50	50	M20×15	G1/2”
WG18-2200-30	32	450	80	50	80	50	50	50	50	50	M20×15	G1/2”
WG18-2400-40	32	450	80	50	80	50	50	50	50	50	M20×15	G1/2”
WG18-2600-50	32	450	80	50	80	50	50	50	50	50	M20×15	G1/2”
WG18-2800-80	32	450	80	50	80	50	50	50	80	80	M20×15	G1/2”
WG18-3000-100	32	450	80	80	80	50	50	50	80	80	M20×15	G1/2”
WG18-3200-150	32	450	100	100	80	50	50	50	80	80	M20×15	G1/2”
Use	Level gauge port	Manhole	Safety valve port	Vent port	Sewage outfall	Gas phase balance port	Gas phase port	Liquid phase backflow port	Liquid phase outlet	Liquid phase inlet	Pressure gauge port	Thermometer interface

Note: 2 storage tank manholes above 80m3.
