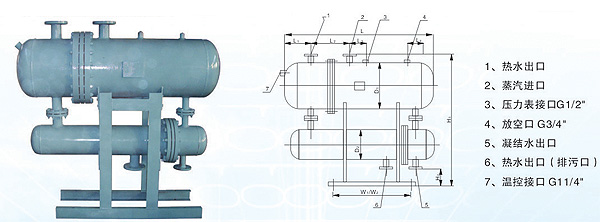

FQS series of energy-efficient combined automobile - water-water heat exchanger |
|
|
Model/Parameter/Dimension (mm) |
D1 |
D2 |
H1 |
H2 |
L |
L1 |
L2 |
L3 |
L4 |
W1 |
W2 |
Hot water
outlet
DN |
Vapor
inlet
DN |
Condensed water
outlet
DN |
Hot water
inlet
DN |
Heat exchanger for heating |
FQS0.35-98/70 |
377 |
219 |
1540 |
400 |
1500 |
350 |
400 |
300 |
160 |
650 |
400 |
50 |
50 |
20 |
50 |
FQS0.7-95/70 |
420 |
273 |
1580 |
400 |
1500 |
350 |
400 |
300 |
180 |
750 |
400 |
65 |
50 |
25 |
65 |
FQS1.05-95/70 |
420 |
273 |
1580 |
400 |
1700 |
350 |
400 |
300 |
180 |
850 |
400 |
65 |
65 |
40 |
65 |
FQS1.4-95/70 |
520 |
273 |
1720 |
400 |
1650 |
400 |
450 |
380 |
210 |
950 |
500 |
100 |
80 |
40 |
100 |
FQS2.1-95/70 |
620 |
325 |
2080 |
600 |
1900 |
400 |
450 |
380 |
240 |
1150 |
600 |
125 |
100 |
50 |
125 |
FQS2.8-95/70 |
620 |
377 |
2080 |
600 |
2000 |
400 |
450 |
380 |
240 |
1150 |
600 |
150 |
100 |
50 |
150 |
FQS3.5-95/70 |
720 |
377 |
2220 |
600 |
2100 |
450 |
500 |
420 |
280 |
1250 |
700 |
150 |
125 |
65 |
150 |
FQS4.2-95/70 |
720 |
377 |
2220 |
600 |
2400 |
450 |
500 |
420 |
280 |
1250 |
700 |
150 |
125 |
65 |
150 |
FQS5.6-95/70 |
820 |
377 |
2430 |
700 |
2500 |
500 |
550 |
450 |
320 |
1250 |
800 |
200 |
150 |
65 |
200 |
Heat exchanger for air conditioning |
FQS0.35-60/50 |
377 |
219 |
1540 |
400 |
1400 |
350 |
400 |
300 |
160 |
650 |
400 |
65 |
50 |
20 |
65 |
FQS0.7-60/50 |
420 |
273 |
1580 |
400 |
1400 |
350 |
400 |
300 |
180 |
750 |
400 |
100 |
50 |
25 |
100 |
FQS1.05-60/50 |
420 |
273 |
1580 |
400 |
1600 |
350 |
400 |
300 |
180 |
850 |
400 |
125 |
65 |
40 |
125 |
FQS1.4-60/50 |
520 |
273 |
1720 |
400 |
1600 |
400 |
450 |
380 |
210 |
950 |
500 |
150 |
80 |
40 |
150 |
FQS2.1-60/50 |
620 |
325 |
2080 |
600 |
1850 |
400 |
450 |
380 |
240 |
1150 |
600 |
200 |
100 |
50 |
200 |
FQS2.8-60/50 |
620 |
377 |
2080 |
600 |
1950 |
400 |
450 |
380 |
240 |
1150 |
600 |
200 |
I00 |
50 |
200 |
FQS3.5-60/50 |
720 |
377 |
2220 |
600 |
2000 |
450 |
500 |
420 |
280 |
1250 |
700 |
250 |
125 |
65 |
250 |
FQS4.2-60/50 |
720 |
377 |
2220 |
600 |
2200 |
450 |
500 |
420 |
280 |
1250 |
700 |
250 |
125 |
65 |
250 |
Heat exchanger for domestic hot water |
FQS10-60/10 |
377 |
273 |
1580 |
400 |
1400 |
350 |
400 |
300 |
160 |
650 |
400 |
50 |
50 |
20 |
50 |
FQS15-60/10 |
420 |
273 |
1580 |
400 |
1450 |
350 |
400 |
300 |
180 |
650 |
400 |
50 |
50 |
20 |
50 |
FQS20-60/10 |
420 |
273 |
1580 |
400 |
1600 |
350 |
450 |
300 |
180 |
650 |
400 |
65 |
65 |
25 |
65 |
|
|
 |
|
