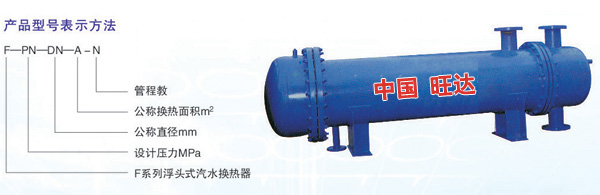

F series floating heat steam-water heat exchanger |
|
|
Main technical parameters
| Specification DN (mm) |
273 |
325 |
400 |
500 |
600 |
800 |
Design pressure PN (MPa) |
0.6, 1.0 |
Design temperature (℃) |
Shell side |
164,183 (the medium is saturated steam) |
Tube pass |
150, the medium is water |
Operating temperature (℃) |
Shell side |
158, 180 |
Tube pass |
70-95, 70-130 |
Heat transfer tube specification |
φ25×2.5, φ25×2 |
Heat transfer tube length (mm) |
1500 200 2500 2800 3000 3200 3500 |
Tube pass number |
2 |
4 |
Main performance parameters
| Effective length L (mm) |
1500 |
2000 |
2500 |
2800 |
3000 |
3200 |
3500 |
Design pressure (MPa) |
0.6 |
1.0 |
0.6 |
1.0 |
0.6 |
1.0 |
0.6 |
1.0 |
0.6 |
1.0 |
0.6 |
1.0 |
0.6 |
1.0 |
Diameter
DN(mm) |
Tube pass number(N) |
Total tube number (n) |
Calculated heat transfer area (m2)/equipment net weight (kg) |
273 |
2 |
18 |
2 |
2 |
2.7 |
2.7 |
3.4 |
3.4 |
|
|
|
|
|
|
|
|
300 |
390 |
340 |
450 |
387 |
515 |
|
|
|
|
|
|
|
|
325 |
2 |
32 |
3.6 |
3.6 |
5 |
5 |
6 |
6 |
7 |
7 |
7.4 |
7.4 |
|
|
|
|
409.6 |
460 |
470.7 |
526 |
529.3 |
586 |
567.6 |
622 |
590.9 |
653 |
|
|
|
|
400 |
2 |
74 |
8 |
8 |
11 |
11 |
14 |
14 |
16 |
16 |
17 |
17 |
18 |
18 |
|
|
640 |
685 |
820 |
885 |
920 |
985 |
995 |
1045 |
1055 |
1070 |
1095 |
1140 |
|
|
500 |
2 |
124 |
|
|
19 |
19 |
23 |
23 |
26 |
26 |
28 |
28 |
30 |
30 |
|
|
|
|
1130 |
1245 |
1275 |
1390 |
1360 |
1475 |
1400 |
1550 |
1500 |
1610 |
|
|
600 |
4 |
184 |
|
|
|
|
35 |
35 |
40 |
40 |
42 |
42 |
45 |
45 |
50 |
50 |
|
|
|
|
1723 |
1723 |
1845 |
1950 |
1945 |
2050 |
2025 |
23125 |
2145 |
2245 |
800 |
4 |
352 |
|
|
|
|
67 |
67 |
75 |
75 |
80 |
80 |
85 |
85 |
95 |
95 |
|
|
|
|
2980 |
2980 |
3190 |
3345 |
3350 |
3505 |
3495 |
3645 |
3660 |
3860 |
|
|
 |
|
