SFP series horizontal floating coil (steam-water) heat exchanger

SFP series products specification parameters

Parameter/Model	SFP-R.N.K 3.41	SFP-R.N.K -4.05	SFP-R.N.K -5.11	SFP-R.N.K -5.96	SFP-R.N.K -8.83	SFP-R.N.K -10.30	SFP.R.N.K -14.94	SFP-R.N.K -16.60	SFP-R.N.K -21.44	SFP-R.N.K -26.80	SFP-R.N.K -31.50	SFP-R.NK -39.40
Thermal coal	Saturated steam
Volume m3	0.24	0.265	0.32	0.35	0.45	0.50	0.55	0.61	0.77	0.89	1.09	1.18
	0.6
	0.6, 1.0
Tube row number	6	7	9	11	11	14	18	20	16	20	16	20
Coil specification mm	φ16×1.5
Heat transfer area m3	3.41	4.05	5.11	5.96	8.83	10.30	14.94	16.6	21.44	26.8	31.5	39.4
Total equipment weight kg	365	415	445	485	687	756	807	869	1021	1152	1271	1459

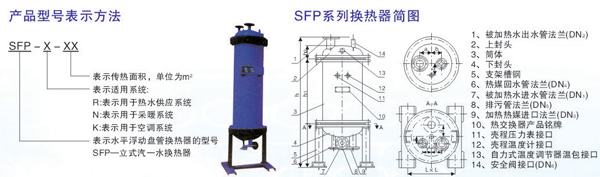

SFP series products shape and nozzle size

Parameter/Model	SFP-R(N.K)							SFP-N(K)
Parameter/Model	3.41	4.05	5.11	5.96	8.83	10.30	14.94	16.6	21.44	26.8	31.5	39.4
Barrel diameter DN	500	500	500	600	600	600	600	600	700	700	800	800
h	1840	2040	2190	2290	2460	2616	2790	3010	2890	3030	3040	3430
h1	1000	1200	1350	1450	1500	1600	1780	2000	1800	2000	2000	2400
h2	180	180	180	180	210	210	210	210	235	235	250	250
h3	550	550	550	550	600	600	650	650	650	650	650	650
L×L	570	570	570	570	670	670	670	670	770	770	870	870
a	150	145	145	135	165	150	120	120	160	160	175	175
b	170	180	180	180	200	200	200	200	200	200	200	200
c	170	170	170	170	210	210	210	210	250	290	290	290
d	90	90	90	90	90	110	110	110	135	135	150	150
e	105	105	105	105	160	170	170	170	185	185	210	210
f	90	90	90	90	90	90	90	90	90	90	110	110
g	125	125	140	150	150	165	165	160	170	170	180	180
l	120	120	120	120	125	125	125	125	145	145	190	190
DN1	65	80	100	100	125	150	150 (200)			175 (200)	200 (250)
DN2	65	80	100	100	125	150	150 (200)			175 (200)	200 (250)
DN3	65	65	80	80	100	125	125	125	150	150	175	175
DN4	32	32	40	40	50	50	50	50	50	50	65	65
DN5	50	50	50	50	50	50	50	50	50	50	50	50
DN6	G1”	G1”	G1”	G1”	G1”	G1”	G1”	G1”	G1”	G1”	G1”	G1”
