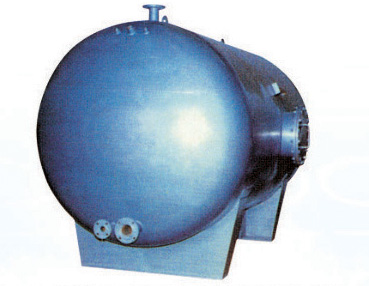

SFQ series horizontal storage horizontal floating coil heat exchanger |
|
|
SFQ series heat exchanger main technical parameters
| Model/Parameter |
Total volume
m3 |
Design pressure (MPa) |
Barrel diameter
DN |
Weight kg |
Heat transfer area
m2 |
Corresponding area water production Q |
Shell side water |
Tube pass
steam/high temperature water |
Water production, heat medium is saturated steam
Q1(kg/h) |
Water production, heat medium is high temperature water
Q2(kg/h) |
SFQ-1.5 |
1.5 |
0.6 |
0.6/1.0 |
1200 |
1896 |
(4.15)
6.64 |
3000/4800 |
1700/2800 |
SFQ-2 |
2 |
0.6 |
0.6/1.0 |
1200 |
2079 |
(4.98)
8.3 |
3600/6400 |
1500/3500 |
SFQ-3 |
3 |
0.6 |
0.6/1.0 |
1200 |
2442 |
(5.81)
9.96 |
4200/7436 |
2400/4200 |
SFQ-4 |
4 |
0.6 |
0.6/1.0 |
1200 |
3204 |
(6.64)
12.45 |
4800/9060 |
2800/5247 |
SFQ-5 |
5 |
0.6 |
0.6/1.0 |
1200 |
3215 |
(8.3)
14.2 |
6400/10413 |
3500/5928 |
SFQ-6 |
6 |
0.6 |
0.6/1.0 |
1200 |
3962 |
(9.96)
15.82 |
7250/11480 |
4200/6604 |
SFQ-8 |
8 |
0.6 |
0.6/1.0 |
1200 |
3970 |
(11.62)
18.2 |
8200/13346 |
4900/6900 |
SFQ-10 |
10 |
0.6 |
0.6/1.0 |
1200 |
4217 |
20.75 |
15100 |
8600 |
SFQ-12 |
12 |
0.6 |
0.6/1.0 |
1200 |
5293 |
26.3 |
19269 |
11077 |
SFQ-15 |
15 |
0.6 |
0.6/1.0 |
1200 |
6973 |
39.4 |
28268 |
16285 |
SFQ series heat exchanger shape and nozzle size
| Parameter (mm)/Model |
SFQ |
1.5 |
2 |
3 |
4 |
5 |
6 |
8 |
10 |
12 |
15 |
Barrel diameter DN |
1000 |
1200 |
1200 |
1600 |
1600 |
1800 |
1800 |
2000 |
2000 |
2000 |
H |
1370 |
1570 |
1570 |
2020 |
2020 |
2220 |
2020 |
2420 |
2420 |
2620 |
H1 |
150 |
150 |
150 |
150 |
150 |
150 |
150 |
150 |
150 |
150 |
H2 |
120 |
120 |
120 |
120 |
120 |
120 |
120 |
120 |
120 |
120 |
H3 |
140 |
140 |
140 |
180 |
180 |
200 |
180 |
250 |
250 |
250 |
H4 |
120 |
120 |
120 |
120 |
120 |
120 |
120 |
120 |
120 |
120 |
L |
1500 |
1450 |
2300 |
1600 |
2000 |
1800 |
2550 |
2500 |
3100 |
3500 |
L1, L5 |
860 |
810 |
1660 |
880 |
1280 |
1050 |
1800 |
1700 |
1700 |
2500 |
L2 |
320 |
320 |
320 |
360 |
360 |
375 |
360 |
395 |
395 |
500 |
L3 |
300 |
350 |
350 |
450 |
450 |
500 |
450 |
550 |
550 |
600 |
L4 |
90 |
90 |
90 |
100 |
100 |
100 |
100 |
110 |
110 |
160 |
L6 |
760 |
880 |
880 |
1120 |
1120 |
1280 |
1280 |
1420 |
1420 |
1580 |
L7 |
600 |
720 |
720 |
960 |
960 |
1120 |
1120 |
1260 |
1260 |
1380 |
DN1 |
65 |
65 |
65 |
8o |
80 |
100 |
100 |
100 |
100 |
125 |
DN2 |
65 |
65 |
65 |
8o |
80 |
80 |
80 |
100 |
100 |
100 |
DN3 |
65 |
65 |
65 |
80 |
80 |
80 |
80 |
100 |
100 |
100 |
DN4 |
G1 1/2” |
G1 1/2” |
G1 1/2” |
G1 1/2” |
G1 1/2” |
G1 1/2” |
G1 1/2” |
G1 1/2” |
G1 1/2” |
G1 1/2” |
DN5 |
50 |
50 |
50 |
50. |
50 |
50 |
50 |
50 |
50 |
50 |
DN6 |
25(65) |
25(65) |
25(65) |
40(80) |
40(80) |
40(100) |
40(100) |
40 |
40 |
40 |
A |
2100 |
2150 |
3000 |
2500 |
2900 |
2800 |
3550 |
3600 |
4200 |
4708 |
Note: Data in bracket is water-water type heat exchanger size |
|
 |
|
