Horizontal positive displacement (energy-efficient) heat exchanger (carbon steel, lined copper, stainless steel)

Add: Chengbei Park, Economic Development Zone, Jingjiang, Jiangsu Province, China
P.C: 214500
Contact: Liu Yazhao
Mobile: +86-13852639836
Tel: +86-523-84650909
Fax: +86-523-89118698

Horizontal positive displacement (energy-efficient) heat exchanger (carbon steel, lined copper, stainless steel)

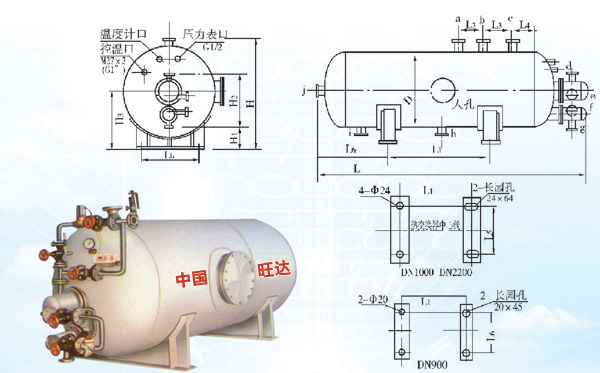

Horizontal positive displacement heat exchanger shape and nozzle size:

Exchanger Model	Capacity (L)	D	L	L1	L2	L3	L4	L5	L6	H	H1	H2	H3	a
4	1500	900	3125	1085	250	250	150	590	825	1270	126	788	664	50
5	2000	1000	3423	1185	300	300	150	600	930	1362	168	788	706	50
6	3000	1200	3690	1465	300	300	180	720	935	1566	280	788	818	50
7	5000	1400	4132	1645	300	300	180	840	1010	1760	330	820	900	50
7.5	6710	1600	4279	1755	300	300	180	960	1072	1760	300	825	1000	50
8	8000	1800	4348	1620	350	350	250	1120	1162	2144	250	1008	1110	50
9	10000	2000	4490	1620	350	350	250	1260	1200	2344	278	1012	1210	50
10	15000	2200	5148	2200	350	350	250	1380	1280	2544	288	1017	1314	50
	b	c	d	e	f	g	h	i	j	k	Weight (kg)
4	50	80	40	40	32	32	50	80	50		1080
5	50	80	40	40	32	32	50	80	50		1450
6	50	100	50	50	40	40	50	100	65		1760
7	50	100	50	50	40	40	50	100	65	110	2200
7.5	50	100	50	50	40	40	50	100	65	110	3800
8	50	100	65	50	50	50	80	100	80	110	4830
9	50	125	80	50	50	50	80	125	80	110	6340
10	50	125	80	50	50	50	80	125	80	130	9392
