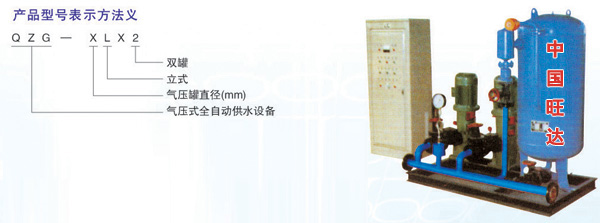

QZG series pneumatic type automatic water supply equipment

Add: Chengbei Park, Economic Development Zone, Jingjiang, Jiangsu Province, China
P.C: 214500
Contact: Liu Yazhao
Mobile: +86-13852639836
Tel: +86-523-84650909
Fax: +86-523-89118698

QZG series pneumatic type automatic water supply equipmentDimensions

No.	Model	A	B	H	H1	H2	H3	φ	φ1
1	QZG-800L	1400	500	2100	1300	150	230	800	400
2	QZG-1000L	1600	600	2300	1500	150	230	1000	500
3	QZG-1200L	1800	700	2560	1700	150	230	1200	650
4	QZG-1400L	2000	700	2750	1700	150	240	1400	850
5	QZG-1600L	2200	800	3438	1800	200	248	1600	1100
6	QZG-1800L	2500	900	3886	1800	200	248	1800	1350
7	QZG-2000L	2800	1000	3530	1800	200	258	2000	1500
8	QZG-1600L×2	2200	2100	3439	1800	200	248	1600	1100
9	QZG-1800L×2	2500	2300	3836	1800	200	248	1800	1350
10	QZG-2000L×2	2800	2500	3500	1800	200	258	2000	1500
11	QZG-2200L×2	3000	2700	4010	2000	200	258	2200	1650

QZG series water supply equipment main technical parameters

No.	Model	Water supply flow m3/h	Pressure tank			Water pump				Water supply pressure		Total equipment weight kg
No.	Model	Water supply flow m3/h	Volume m3	Specifications (φ × H) m	Number	Model	Flow m3/h	Lift m	Power kw	Minimum pressure MPa	Maximum pressure MPa	Total equipment weight kg
1	QZG-800L	3	0.9	800×2000	1	32DL×3	4	35.4	1.1	0.20	0.30	1300
2	QZG-1000L	5	1.46	1000×2300	1	40 DL×3	6.2	35.4	2.2	0.23	0.35	1500
3	QZG-1200L	10	2.35	1200×2300	1	50 DL×3	12.5	36.6	3	0.24	0.36	1600
4	QZG-1400L	15	3.36	1400×2500	1	65 DL×3	18	55.5	7.5	0.38	0.55	2060
5	QZG-1600L	50	4.78	1600×3050	1	65 DL×3	30	55.5	7.5	0.38	0.55	2300
6	QZG-1800L	80	7.79	1800×3886	1	80 DL×3	50	60.0	15	0.42	0.60	3500
7	QZG-2000L	100	8.5	2000×3530	1	80 DL×3	60	60.0	15	0.42	0.60	4200
8	QZG-1600L×2	120	11.1	1600×3438	2	80 DL×3	65	51.0	15	0.35	0.51	4300
9	QZG-1800L×2	140	15.94	1800×3886	2	80 DL×3	50	60.0	15	0.42	0.60	6400
10	QZG-2000L×2	180	17.00	2000×3530	2	100 DL×3	100	60.0	30	0.42	0.60	7500
11	QZG-2200L×2	300	23.94	2200×4010	2	100 DL×3	110	60.0	30	0.42	0.60	10300
