ZRL series automatic water softener (successive type) |
|
|

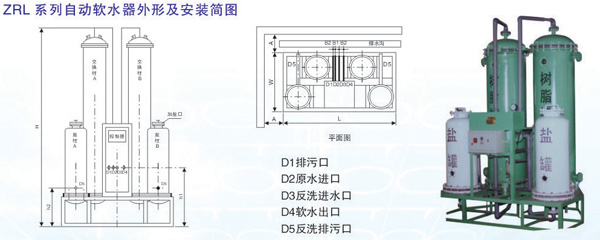

ZRL series automatic water softener shape and installation dimensions
No. |
L |
W |
H |
D2, D4 |
D1 |
D3 |
D5 |
A |
B1 |
B2 |
h1 |
h2 |
ZRL-2 |
1420 |
725 |
2285 |
Dg20 |
Dg15 |
Dg20 |
Dg32 |
500 |
71 |
86 |
720 |
446 |
ZRL-4 |
1580 |
800 |
2630 |
Dg32 |
Dg15 |
Dg20 |
Dg32 |
500 |
82 |
76 |
720 |
486 |
ZRL-6 |
1615 |
850 |
2670 |
Dg32 |
Dg15 |
Dg20 |
Dg32 |
500 |
82 |
76 |
720 |
486 |
ZRL-8 |
1750 |
900 |
2690 |
Dg40 |
Dg15 |
Dg20 |
Dg32 |
500 |
89 |
71 |
720 |
486 |
ZRL-10 |
1970 |
1139 |
2710 |
Dg40 |
Dg15 |
Dg20 |
Dg32 |
500 |
89 |
71 |
720 |
486 |
ZRL-15 |
2700 |
1437 |
2880 |
Dg50 |
Dg20 |
Dg20 |
Dg32 |
600 |
105 |
115 |
720 |
484 |
ZRL-20 |
2960 |
1582 |
2915 |
Dg65 |
Dg20 |
Dg20 |
Dg32 |
700 |
121 |
118 |
720 |
554 |
Note: ZRL-20 water inlet, D2 is DN65, PN10 flanges, othe other inlets and outlets are pipe thread connection.
ZRL series automatic water sofener performance and specifications
Name |
Unit |
ZRL-2 |
ZRL-4 |
ZRL-6 |
ZRL-8 |
ZRL-10 |
ZRL-15 |
ZRL-20 |
Raw water pressure |
Mpa |
|
Water yield |
t/h |
1.5-2.5 |
3-5 |
5-7 |
7-9 |
9-11 |
13-17 |
18-22 |
Raw water hardness |
mmol/l |
≤15 |
Softened water residual hard value |
mm |
≤0.03 |
Exchange column specifications
(diameter x height) |
mm/mm |
225×1700 |
300×2000 |
350×2000 |
400×2000 |
450×2000 |
600×2000 |
700×2000 |
Resin filling amount |
Kg/column |
56 |
117 |
159 |
208 |
263 |
467 |
636 |
Salt consumption |
Kg/time |
5.2 |
10.9 |
14.8 |
19.4 |
24.5 |
43.5 |
59.2 |
Self water consumption rate |
% |
1-2 |
(Power supply) power consumption |
kwh/24h |
(220V 2A)0.4 |
Weight (without resin) |
Kg |
250 |
490 |
530 |
530 |
890 |
1100 |
1500 |
Operating weight |
Kg |
756 |
1000 |
1180 |
1180 |
1930 |
3618 |
4375 |
|
|
 |
|
