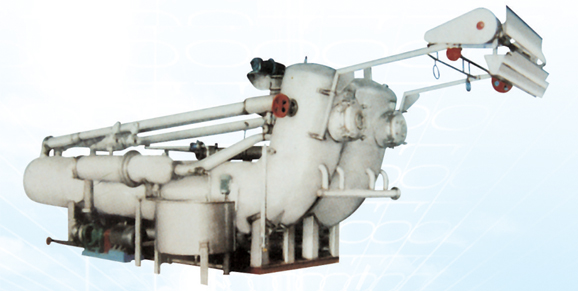

HK-28 high temperature and pressure overflow dyeing machine |
|
|
Main technical parameters:
Maximum working pressure |
0.44Mpa |
Maximum operating temperature |
140℃ |
Maximum fabric capacity |
500kg/tube |
Liquor ratio |
1:7-1:10 |
Fabric speed |
50-300m/min |
Total power |
Single-tube |
22kw |
Double-tube |
33.5kw |
3-tube |
52.4kw |
4-tube |
65.6kw |
Dimensions (mm)×mm |
Single-tube |
9400×2200×2850 |
Double-tube |
9400×3500×2850 |
3-tube |
9400×4800×2850 |
4-tube |
9400×6200×2850 |
|
|
 |
|
