MODEL GRS high temperature and pressure yarn dyeing machine |
|
|

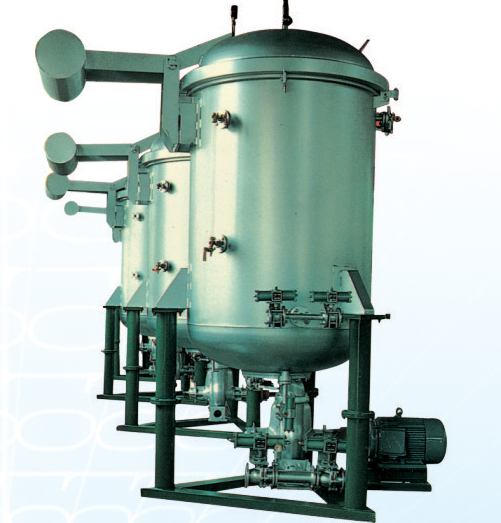

GRS high temperature and pressure yarn dyeing machine

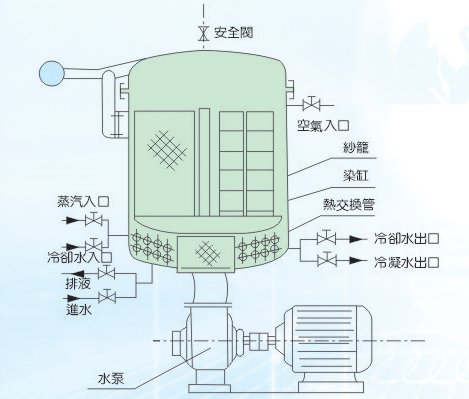

This machine is vertical cylindrical liquid flow high temperature and pressure yarn dyeing machine. Suitable for various natural fibers and synthetic fibers.
Users need to be equipped with: hanging pattern yarn, cheese wool ball, loose fiber, zipper belt and other sarong for five kinds.
This machine has the advantages of wide application scope, shor dyeing process, high yield, low liquor ratio, low energy consumption, easy operation and maintenance, etc.
Model
Item |
GRS-5 |
GRS-25 |
GRS-50 |
GRS-100 |
GRS-200 |
Maximum operating temperature ℃
|
140 |
140 |
140 |
140 |
140 |
Maximum working pressure MPa
|
0.4 |
0.4 |
0.4 |
0.4 |
0.4 |
Capacity kg
|
5 |
25 |
50 |
100 |
200 |
Volume M
|
0.04 |
0.45 |
1.00 |
2.00 |
4.00 |
Supporting power kw
|
2.2 |
5.5 |
7.5 |
11 |
18.5 |
|
|
 |
|
