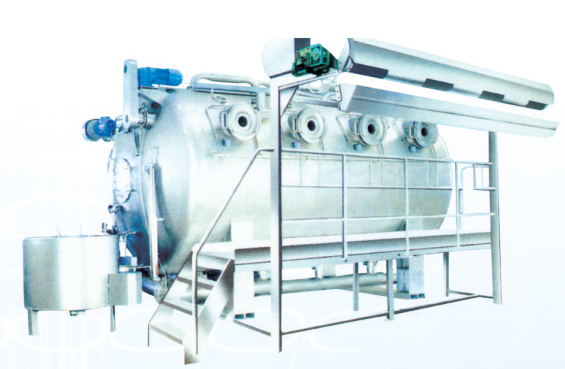

HO high temperature and pressure overflow dyeing machine |
|
|
This machine has advanced design. It is suitable for the scouring and bleaching, dyeing, washing and other processes of various fabrics, particularly heavy cotton fabric.
Main technical parameters
Item/Model |
H0-1T |
H0-2T |
H0-3T |
H0-4T |
Fabric capacity kg |
200-250 |
400-500 |
600-750 |
800-1000 |
Liquor ratio |
1:5-1:8 |
Fabric speed m/min |
200-350 |
Maximum operating temperature ℃ |
140 |
Maximum working pressure MPa |
0.44 |
Circulating pump power (kw) |
11 |
18.5 |
22 |
30 |
Dimensions (mm) |
3600×4600×3100 |
4800×4600×3100 |
5800×4700×3100 |
7600×4700×3200 |
|
|
 |
|
