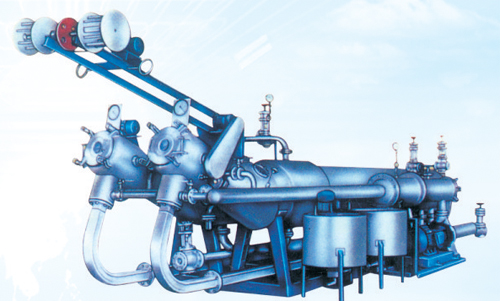

SHR-SB400 high temperature and pressure jet dyeing machine |
|
|
This machine is suitable for the dyeing and washing of polyester, polyester and cotton blend, cotton and linen blend, new synthetic fiber and so on.
Main technical parameters:
Item/Model |
Sb200 |
Sb400 |
Sb800 |
Number of tubes |
1 |
2 |
4 |
Capacity kg |
150-200 |
300-400 |
600-800 |
Liquor ratio |
1:6-1:8 |
Maximum operating temperature ℃ |
140 |
Maximum working pressure MPa |
0.44 |
Fabric speed m/min |
0-500 |
Total power kw |
20.25 |
33.75 |
47.5 |
Dimensions (mm) |
L |
10500 |
10500 |
10500 |
W |
1500 |
2500 |
4600 |
H |
2600 |
2600 |
2600 |
|
|
 |
|
