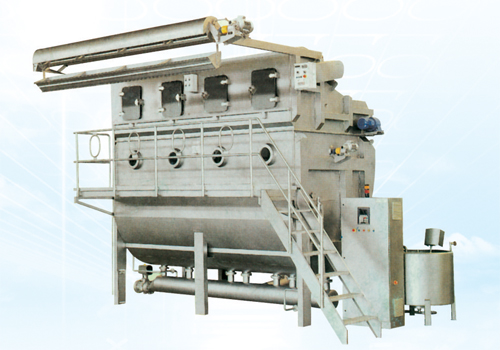

SMU672A room temperature liquid flow dyeing machine |
|
|
Main technical parameters
Machine model: Vertical, "U" shaped; including 1, 2, 3, 4, 6 tubes
Constant water ratio: 1: 5
Fabric capacity: 200-250kg/tube
Fabric speed: Maximum up to 350m/min
Maximum working temperature: 98℃
Fabric gram weight range: 50-600g/m2
Installed capacity: 10.7kw/1-tube; 19.3kw/2-tube; 24.5kw/3-tube; 29.5kw/4-tube; 47kw/6-tube;
Dimensions: (L × W × H)
1-tube: 4550×2330×3920; 2-tube: 4550×3580×3920; 3-tube: 4600×4630×3920
4-tube: 4700×5180×4050; 6-tube: 4700×7100×4050 |
|
 |
|
