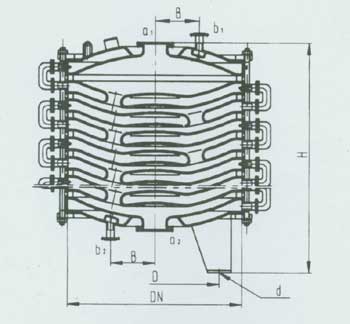

搪玻璃碟片式冷凝器和搪玻璃多片式冷凝器
|
|
|
|
尺寸表
|
| 类别 |
冷凝片数 |
冷凝面m2 |
DN |
D |
B |
～H |
d |
重量kg |
| P0.5 |
3 |
2 |
|
830 |
23 |
250 |
| 4 |
2.5 |
920 |
d |
295 |
| 5 |
3 |
1010 |
340 |
| 6 |
3.5 |
1100 |
385 |
| 7 |
4 |
610 |
450 |
175 |
1190 |
420 |
| 8 |
4.5 |
|
1280 |
465 |
| 9 |
5 |
1370 |
510 |
| 10 |
5.5 |
1460 |
555 |
| P1 |
5 |
6 |
1110 |
630 |
| 6 |
7 |
1210 |
710 |
| 7 |
8 |
870 |
650 |
220 |
1310 |
780 |
| 8 |
9 |
|
1410 |
860 |
| 9 |
10 |
1510 |
940 |
|
10 |
11 |
1610 |
1020 |
|
|
管口表
|
|
代号
|
公称直径
|
用途
|
附注
|
|
d-
|
P0.5
|
P1
|
-
|
-
|
|
a1
|
80
|
100
|
热流体进口
|
按HGJ45-91 PN0.6
|
|
a2
|
80
|
100
|
热流体出口
|
-
|
|
b1
|
25
|
32
|
冷却水出口
|
按HGJ45-91 PN0.6
|
|
b2
|
25
|
32
|
冷却水进口
|
-
|
|
|
|
 |
