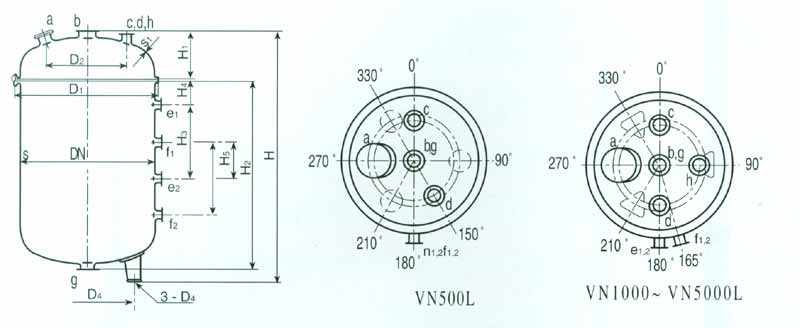

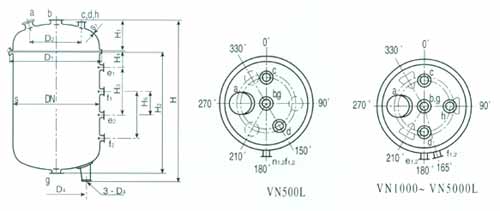

K型搪玻璃反应罐
|
|
|
|
尺寸表
|
|
公称容积L
|
代号
|
重量kg
|
|
DN
|
D1
|
D2
|
D3
|
D4
|
H
|
H1
|
H2
|
H3
|
H4
|
H5
|
-
|
|
500
|
800
|
900
|
480
|
22
|
560
|
1940
|
385
|
1310
|
800
|
200
|
/
|
530
|
|
1000
|
1000
|
1100
|
600
|
25
|
700
|
2250
|
435
|
1570
|
1000
|
185
|
/
|
860
|
|
1500
|
1200
|
1310
|
720
|
25
|
840
|
2380
|
485
|
1655
|
1200
|
240
|
/
|
1120
|
|
2000
|
1300
|
1420
|
780
|
25
|
910
|
2600
|
510
|
1850
|
1200
|
225
|
/
|
1470
|
|
3000
|
1450
|
1570
|
870
|
30
|
1015
|
3010
|
560
|
2220
|
1200
|
260
|
/
|
1970
|
|
5000
|
1600
|
1740
|
960
|
30
|
1120
|
3810
|
605
|
2970
|
1200
|
195
|
405
|
2910
|
|
|
管口表
|
|
公称容积L
|
管口公称直径
|
|
a
|
b
|
c
|
d
|
e1.2
|
f1.2
|
g
|
h
|
|
500
|
150
|
80
|
80
|
65
|
65
|
/
|
80
|
/
|
|
1000
|
150
|
80
|
80
|
80
|
65
|
/
|
80
|
/
|
|
1500
|
200
|
100
|
80
|
80
|
65
|
/
|
100
|
80
|
|
2000
|
300×400
|
100
|
80
|
80
|
65
|
/
|
100
|
80
|
|
3000
|
300×400
|
125
|
100
|
100
|
65
|
/
|
125
|
100
|
|
5000
|
300×400
|
125
|
100
|
100
|
65
|
65
|
125
|
100
|
|
|
|
 |
