GLB serial single screw defueling pump



Characteristics:

1. complete types: Operation temp. room temperature to 270°C; discharge capacity is 4 to 150m3/day; discharge pressure is 15MPa

2. GLB serial single screw defueling pump can used in variety crude oils with high viscosity, sanding, waxing and water-bearing

3. Comparing with common oil pump, it needs less oil pressure

4. It can adjust its operation parameter by adjusting pulley

5. Comparing with common oil pump, it has no torsional moment impact when it is working.

6. The gearing can connect the flange and pipe directly, it has lower steel consumption, low space.

7. Easy maintainence, low lubricant cost.

8. It have no valave and parts, so it works steady.

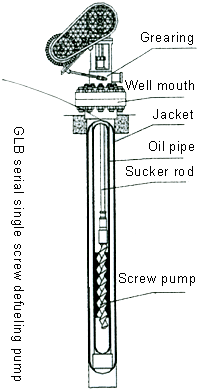

Model illustration



    Standard: SY5549-92

1.Pump

2. running gear on the mouth of well:

3. Electric cabinet:
