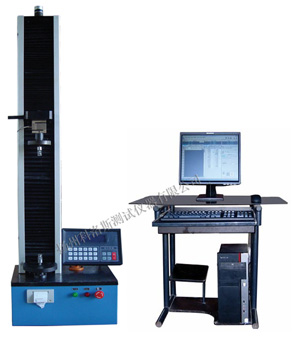

Products Your current position: Home >> Products   TLS-W Computer control One-Arm Spring tension/compression testing machine series     Technical Specifications/ Model TLS-W0.1, 0.2, 0.5, 1, 2, 5 Max Testing Force (KN) 0.1, 0.2, 0.5, 1, 2, 5 Force testing range 2%-100%FS Value precision better than display value ±1% Displacement resolution ratio 0.01mm Displacement precision better than display value ±1% Effective tensile space standard configuration : 600mm (or following your demands) Effective compression space standard configuration : 650mm (or following your demands) Testing speed 0.01-200mm/min or 0.01-500mm/min Test accessories Stretching, compressed the auxiliary equipment (phi 120 mm pressure plate) (or following your demands) Main Configuration Import ac servo motor, high precision load sensor, ball screw, lenovo computer, A4 ink-jet printer ※reference only
