| Specification
Model |
LDS-A01 |
LDS-AS02 |
LDS-A05 |
LDS-A1 |
LDS-A2 |
LDS-A5 |
| Max Testing Force (N) |
100 |
200 |
500 |
1000 |
2000 |
5000 |

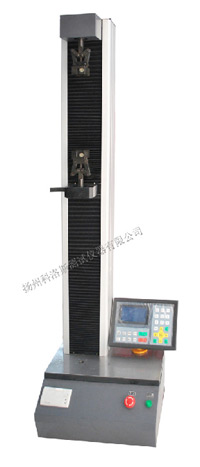

| Type of structure |
mainframe
is single arm type structure |
| Accuracy Degree |
1 grade or 0.5 grade |
| Effective Force testing range |
standard configuration
: 2%-100%FS;option: 04%-100%FS |
| Testing Force resolution ratio |
5/10000 of Max Testing Force |
| Testing Force measuring accuracy |
≦display value ±1.0% (option±0.5%) |
| Velocity node range |
0.01-200mm/min or 0.01-500mm/min |
| Sensor Configuration |
Standard Configuration: high precision tension/compressionLoad sensor ( Max Load )An expansion configuration: can add more load sensor |
| speed precision |
better than display value ±1% (option is display value ±0.5%) |
| Displacement measuring accuracy |
better than display value ±1% (option is display value ±0.5%) |
| Displacement resolution |
0.001mm |
| distortion, measuring system |
Standard Configuration: standard distance 50mm, distortion, range25mm(or following your demands) |
| distortion,measurement range |
2%-100%FS |
| distortion,measuring accuracy |
better than display value ±1% ( ±0.5%) |
| Overload protection |
Max Testing Force 10% |
| Mobile beam protection |
double protection of Electronic limit and SPC |
| Effective Tensile test space
(with clamp) |
850mm (or following your demands) |
| Size |
standard Machine type: 300mm×450mm×1600mm |
| Weight |
150kg |
| power |
220V/50HZ |
| Test accessories |
tensile clamp |
| Main Configuration |
Stepping servo motor, high precisionLoad sensor, high precision no clearance the ball screw, big distortion, tracking device, not stepless speed adjustment |
| ※reference only |
