Heat exchange
container

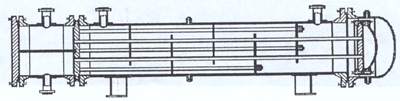

floated head heat exchanger
One end of the tube plate is fixed with the
shell body and the other end can float in the shell freely.

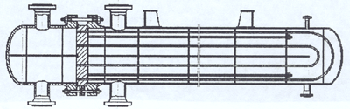

U-type tube heat
exchanger
U-type tube heat exchanger's structure is simple
and the heat exchange tube can flex freely,so there is no
stress of difference in temperature.

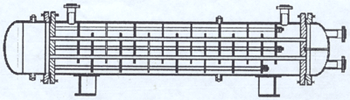

Fixed tube plate
heat exchanger
The two ends of the fixed tube plate heat exchanger
is jointing with the shell body and the structure is simple
with many specs.It is widely used in engineering.
Water jacket stove
|
Water
jacket stove
|
| light material |
35m3/h natural gas dosage |
| treating oil quantity |
120T/d |
| working temperature |
water temperature 118℃ ,entrance temperature
20℃ |
| working pressure |
0.4Mpa ,1.6Mpa |
