spray film evaporator

Usage:widely used in the fields of petroleum,chemical,medicine,fertilizer,paper making ,aluminum,monosodium glutamate,vintage and refine sugar,etc.

heat exchange area:30m2-2000m2 series products

spec
D×L
DN3350×6700
DN3500×6700
DN3350×7000
DN3500×7000
heat pipe quantity
1377
1629
1377
1629
heat pipe mm
φ32×1
φ32×1
φ32×1
φ32×1
heat area m2
927
1097
968.5
1146
heat pipe mm
φ33×1
φ33×1
φ33×1
φ33×1
heat area m2
956
1131
999
1182

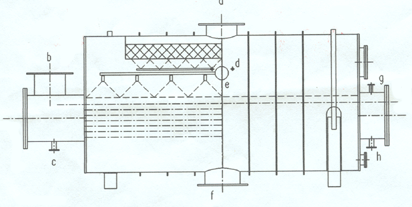

main craftwork：a.second steam entrance b.steam entrance c.condensate exit d.cleaning liquid entrance e.thin liquor entrance f.thin liquor entrance g.fixed gas exit h.condensate exit
