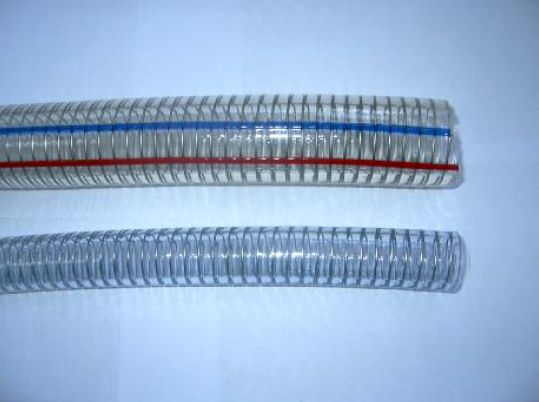

PVC Steel Wire Reinforced Hose
APPLICATIONS
The hose is widely used for drawing and conveying water, oil and powder in the factories,
agriculture, engineering, foodstuffs and sanitation lines. The hose used for foodstuffs is made of
special materials. It is non-toxic, light, without odor and transparent. This hose can be used for
conveying milk, beverage, distilled liquor, beer, jam, and other foods.
We can also insert the copper wire into the hose. This hose can avoid the block of the following in
the hose due to the static, and protect users from getting electric shock or electric current
impingement.
CHARACTERISTICS
This hose, with steel wire screwing inlaid in the hose, is light, transparent, with small bending
radius. It has good adaptability to hard weather conditions and minus pressure. With colorful
symbol lines on the surface of the hose, it can be more beautiful.
WORKINGTEMPERATURE: -5°C-65°C
Specifications of PVC SteelWire Reinforced Hose
British Measurement |
Metric Measurement |
Length/Roll |
Working Pressure |
Bursting Pressure |
Weight |
Packing Volume |
Inside Diameter |
Outside Diameter |
Mpa |
Mpa |
Inch |
MM |
MM |
M |
Mpa |
At 23℃ |
At 60℃ |
KG/Roll |
CBM/Roll |
1/4” |
6 |
11 |
100 |
-0.1-1.1 |
3.3 |
1.6 |
11.5 |
0.028 |
5/16” |
8 |
14 |
100 |
3.3 |
1.6 |
15 |
0.039 |
3/8” |
9 |
15 |
100 |
3.3 |
1.6 |
18 |
0.029 |
3/8” |
10 |
16 |
100 |
3.3 |
1.5 |
20 |
0.045 |
1/2" |
12 |
18 |
100 |
-0.1-1.0 |
3.0 |
1.5 |
22 |
0.049 |
5/8” |
15 |
22 |
100 |
3.0 |
1.3 |
31 |
0.074 |
3/4” |
19 |
26 |
50 |
3.0 |
1.2 |
18 |
0.052 |
1” |
25 |
33 |
50 |
2.5 |
1 |
27 |
0.08 |
1-1/4” |
32 |
41 |
40 |
-0.1-0.7 |
2.0 |
0.9 |
31 |
0.106 |
1-1/2” |
38 |
48 |
40 |
-0.1-0.6 |
1.8 |
0.8 |
42 |
0.154 |
1-3/4” |
45 |
56 |
40 |
1.7 |
0.8 |
52 |
0.19 |
1-7/8” |
48 |
59 |
40 |
-0.1-0.5 |
1.6 |
0.8 |
56 |
0.208 |
2” |
50 |
62 |
40 |
1.6 |
0.7 |
64 |
0.276 |
2-5/16" |
58 |
70 |
40 |
1.5 |
0.7 |
80 |
0.35 |
2-1/2” |
63 |
80 |
30 |
1.4 |
0.7 |
84 |
0.331 |
3” |
75 |
91 |
30 |
1.3 |
0.5 |
105 |
0.436 |
3-1/2” |
90 |
108 |
20 |
-0.1-0.4 |
1.2 |
0.5 |
90 |
0.64 |
4" |
100 |
118 |
20 |
-0.1-0.3 |
1.0 |
0.5 |
96 |
0.505 |
4-3/8" |
110 |
123 |
20 |
1.0 |
0.5 |
80 |
0.81 |
4-5/8" |
117 |
133 |
20 |
1.0 |
0.5 |
110 |
1.024 |
5” |
127 |
143 |
20 |
1.0 |
0.5 |
120 |
1.243 |
5-1/2" |
140 |
156 |
10 |
1.0 |
0.5 |
65 |
0.627 |
6” |
152 |
170 |
10 |
1.0 |
0.5 |
90 |
0.765 |
6-5/16" |
160 |
176 |
10 |
1.0 |
0.5 |
85 |
0.922 |
7" |
180 |
196 |
10 |
1.0 |
0.5 |
85 |
1.156 |
8" |
200 |
224 |
10 |
1.0 |
0.5 |
120 |
1.426 |
|
