Water Rubber Hose

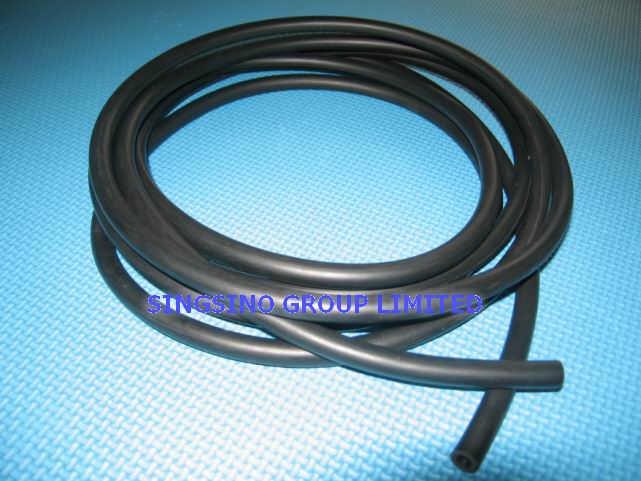

Picture:SGSN-RWH-001
Instouction
Name of goods : water rubber hose
Describtion:
1.Composing :the hose wall is conduction with rubber outer laver, polyester reinforcement and the rubber inside layer
2.Application & Characteristics: the hose is very soft, the surface is very lubricity, widely used for drawing and conveying water.
3.Technical data:
|
British measurement |
Metric measurement |
Working pressure |
Bursting pressure |
Maximal length |
Inch |
I.D. (mm) |
O.D.(mm) |
(MPa) |
(MPa) |
( m ) |
3/16” |
5 |
12 |
0.5 ~ 1.0 |
1.5 ~ 3.0 |
100 |
1/4” |
6 |
13 |
0.5 ~ 1.0 |
1.5 ~ 3.0 |
100 |
5/16” |
8 |
15 |
0.5 ~ 1.0 |
1.5 ~ 3.0 |
100 |
3/8” |
10 |
17 |
0.5 ~ 1.0 |
1.5 ~ 3.0 |
100 |
1/2” |
13 |
21 |
0.5 ~ 1.0 |
1.5 ~ 3.0 |
100 |
5/8” |
16 |
25 |
0.5 ~ 1.0 |
1.5 ~ 3.0 |
100 |
3/4” |
19 |
28 |
0.5 ~ 1.0 |
1.5 ~ 3.0 |
50 |
1” |
25 |
35 |
0.5 ~ 1.0 |
1.5 ~ 3.0 |
50 |
|
