General descriptions

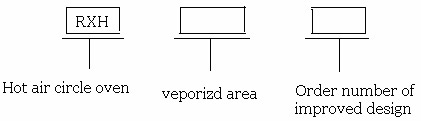

CT-C series hot air circle oven is equipped with low noise axial flow fan and automatic temperature control system. The circle system is fully sealed. It makes the hot efficiency increased from 3-7% of traditional oven to 35-45%. The maximum hot efficiency can be 70%. The successful design of CT-C series hot air circle oven makes the hot air circle oven catch up the advanced level both at home and abroad. It makes China save plenty of energy source and increase profit of enterprises. This model of the industral standard RXH issued In 1990 by State Administration Bureau of Medicines.
Features
1.Most of hot air is circled inside the oven. The hot efficiency is high;
2.
The energy source can be saved;
3.
It uses enhanced ventilation and equips with adjustable air distributing plate inside the oven, Raw material can be dried evenly;
4.
The heat source can be steam, hot water, electricity or far infrared. The machine has low noise and stable operation. The temperature can be controlled automatically. The installation and maintenance are very convenient;
5.
The applied fields are wide and can be suitable for all kinds of raw materials. It is a comprehensive drier.
Scope of application
It is suitable for heating and solidification, drying and dehydration of raw materials in pharmaceutical industry, chemical industry, foodstuff industry, agricultural and sideline products, aquatic products, light industry, heavy industry and so on. The raw materials can be medicine of raw materials, Chinese traditional medicine, tablet of drink, immersed electuary, powder, granule, packing bottle, pigment, dyestuff, dehydration vegetable, dried fruit and melons, banger, plastic resin, electric elements, drying varnish and so on.
Main techniacal parameters of hot air oven and relevant explanation
1 The heat source can be stearn, electricity, far infrared, or steam + electricity. Customer can
select one of the heating ways in accordance with practical conditions;
2 Temperature of operation: 50 -140°C for steam. Maximum temperature will be l50°C;
3 50-350°C for electricity or far infrared;
4 There are automatic and computer control systems for customer selection;
5 The normal pressure of steam wilI be 0.02-0.8Mpa (0.2-8kg/cm2);
6 The equipped power of electric heater will be l5kw Calculated with Model I and the operational power to be used will be 5-8kw/hr;
7 For special requirement, please indicate it in order;
8 The price of non-standard oven shall be discussed additionally;
9 If the operation temperature is more than l40°C or less than 60°C, please indicate it in order;
10 The size of drying trolly and tray is standardized. They can be exchanged each othe r;
11 The size of drying tray: 460x640x45 (mm).
Technical parameters
Model of indust-
rial standard |
Model
specification |
Dry amount each time (kg) |
Equipment power (kw) |
Consumption
of steam (kg/h) |
Area of radiation (m2) |
Amount of air (m3/h) |
Temperature difference between up and low (°C) |
Amount of drying tray to be equipped |
Overall dimension W*D*H (mm) |
Equipped drying trolly |
Equipment weight (kg) |
RXH-
14-B |
CT-Ⅰ |
120 |
1.1 |
20 |
20 |
1400 |
±2 |
48 |
2430*1200*2375 |
2 |
1200 |
RXH-
27-B |
CT-Ⅱ |
240 |
1.1 |
40 |
40 |
5200 |
±2 |
96 |
2430*2200*2433 |
4 |
1500 |
RXH-
41-B |
CT-Ⅲ |
360 |
2.2 |
60 |
80 |
9800 |
±2 |
144 |
3430*2200*2620 |
6 |
2000 |
RXH-
54-B |
CT-Ⅳ |
480 |
2.2 |
80 |
100 |
9800 |
±2 |
192 |
4460*2200*2620 |
8 |
2300 |
RXH-
5-C |
CT-C-O |
25 |
0.45 |
5 |
5 |
3450 |
0 |
8 |
1200*1000*1750 |
0 |
800 |
RXH-
7-C |
CT-C-ⅠA |
50 |
0.45 |
10 |
10 |
3450 |
±2 |
24 |
1400*1200*2000 |
1 |
1000 |
RXH-
14-C |
CT-C-Ⅰ |
120 |
0.45 |
18 |
20 |
3450 |
±2 |
48 |
2300*1200*2000 |
2 |
1500 |
RXH-
27-C |
CT-C-Ⅱ |
240 |
0.9 |
36 |
40 |
6900 |
±2 |
96 |
2300*2200*2000 |
4 |
1800 |
RXH-
27A-C |
CT-C-ⅡA |
240 |
0.9 |
36 |
40 |
6900 |
±2 |
96 |
4460*1200*2290 |
4 |
180 |
RXH-
41-C |
CT-C-Ⅲ |
360 |
1.35 |
54 |
80 |
10350 |
±2 |
144 |
3430*2200*2000 |
6 |
2200 |
RXH-
42A-C |
CT-C-ⅢA |
360 |
1.35 |
54 |
80 |
10350 |
±2 |
144 |
2300*3200*2000 |
6 |
2200 |
RXH-
54-C |
CT-C-Ⅳ |
480 |
1.8 |
72 |
100 |
13800 |
±2 |
92 |
4460*2200*2290 |
8 |
2800 |
RXH-
25-A |
High effect and high temperature far infrared sterilization oven.The power will be equipped in accordance with the requirements of temperature. |
1200*1000*1600 |
1 |
1200 |
|
