General descriptions
LPG series high-speed centrifuge atmoizing drier is a special equipment and is suitable for drying emulsion,suspending liquid,liquor and so on.Particularly it has unique advantage for drying ploymers and resins;dyestuff and pigment;ceramics,glass;derust agent;pesticide;carbohydrate.dairy products;detergent and surfactant;fertilizer,organic compound,inorganic compound and so on.
Principle of work
Air is turned into hot air through air filter and heater and erters into hot air distributor at the top of dry chamber and then enters into dry chamber spirally and evenly.At the same time liquid of raw material is sent to centrifugal atomizer at the top of dry chamber pumped by pump through filter.In which liquid of raw material atomizes ting droplets.Air and liquid of raw material flows and contacs each other fully.The moisture vaporizes rapidly.Liquid of raw material is dried into finished product in a short time.The finished product is discharged through cyclone separator at the bottom of drier.The wasted air is exhausted through fan.
Features
1.Its dry speed is very quick,in general it needs 5-15 seconds.It has feature of momentary dry:
2.Because Raw material can be dried momerntarily,Especially,it is suitable for drying thermal sensitive raw materials.It can maintain color,smell and taste of raw materials.
3.Its operation is stable and simple.Its regulation and control is very conventient.It is easy to realize continuous controlled production:
4.The distribution,fluidity and solubility of product are good.

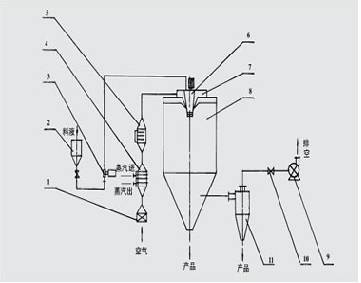

 Sketch of flow chart
- air filter
- drum of raw material
- mono-pump
- steam heater
- electric heater
- atomizer
- hot air distributor
- drying tower
- fan air adjusting butterfly valve
- cyclone duster

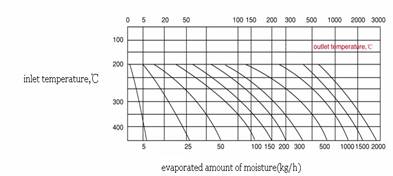

Technical parameters
Model |
LPG
-5 |
LPG
-25 |
LPG
-50 |
LPG
-100 |
LPG
-150 |
LPG
-200 |
LPG
-500 |
LPG
-800 |
LPG
-1000 |
LPG
-2000 |
LPG
-3000 |
LPG
-4500 |
LPG
-6500 |
Temperature of entry°C |
180-350 automatically controlled |
Expore temperature°C |
80-90 |
Spraying form |
High speed centrifugal atomizer |
Evaporation capacity of moisture content kg/h |
5 |
25 |
50 |
100 |
150 |
200 |
500 |
800 |
1000 |
2000 |
3000 |
4500 |
6500 |
Rotational speed of thr atmoizer(r.p.m) |
25000 |
20000 |
20000 |
18000 |
16000 |
12000-13000 |
11000-12000 |
Atomization is a diameter(mm) |
60 |
120 |
150 |
180-210 |
Require to confirm according to techonlogical process |
Maximum power of electric heating (kw) |
9 |
36 |
60 |
81 |
99 |
|
Rate of recovery of the dry powder % |
≧95 |
Length of occupation of land (m) |
1.6 |
4 |
4.5 |
5.2 |
7 |
7.5 |
12.5 |
13.5 |
14.5 |
Require to confirm according to technological process,factory site terms and user |
Width of occupation of land(m) |
1.2 |
2.7 |
2.8 |
3.5 |
5.5 |
6 |
8 |
12 |
14 |
Body height of tower(m) |
2 |
4.5 |
5.5 |
6.7 |
7.2 |
8 |
10 |
11 |
15 |
The shower nozzle hoists the height (m) |
- |
2 |
2 |
2.5 |
2.5 |
2.5 |
2.5 |
3.2 |
3.2 |
|
