Main application
The mixer is used for the mixing of granules for pharmacy or other relative industries.
Characteristics
The mixers are suitable for mixing those dry powdery and granular materials which have better flow ability.
It consists of two asymmetric barrels where the materials can move both longitudinally and transversely so that the mixing evenness cab be over 99 percent.
The mixers can be equipped with vacuum suction system with which materials can be sucked into the mixing barredl and mixed under sealing condition. There is no driving mechanism inside the mixer so that it is very clean and meets the requirements of GMP.
Sketch of flow chart
- Material Cylinder
- Material Absorption Cylinder
- Blender
- Discharging Cylinder
- Vacuum Meter
- Safety Tank
- Vacuum Pump
- Motor
Technical parameters
Model |
Capacity
(m3) |
Loading factor |
Loading capacity(L) |

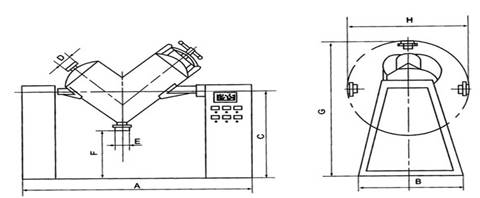

A |
B |
C |
D |
E |
F |
G |
H |
Rotating speed
(r/min) |
Motor power
(kw) |
Total weight (kg) |
model of vacuum pump |
Length(mm) |
Weigth
(mm) |
Height of centreline(mm) |
Inlet dia.(mm) |
Outlet dia
(mm) |
Outlet height
(mm) |
Rotation height(mm) |
Rotation dia (mm) |
VH-0.1 |
0.1 |
0.4 |
40 |
1900 |
800 |
800 |
Φ250 |
Φ80 |
650 |
1730 |
1080 |
15 |
1.1 |
180 |
W2 |
VH-0.2 |
0.2 |
0.4 |
80 |
2010 |
850 |
850 |
Φ300 |
Φ100 |
750 |
2230 |
1480 |
15 |
1.5 |
250 |
W2 |
VH-0.3 |
0.3 |
0.4 |
120 |
2220 |
900 |
900 |
Φ300 |
Φ100 |
750 |
2290 |
1540 |
15 |
1.5 |
350 |
W2 |
VH-0.5 |
0.5 |
0.4 |
200 |
2400 |
950 |
950 |
Φ300 |
Φ150 |
750 |
2370 |
1620 |
15 |
1.5 |
550 |
W2/sk-1.5 |
VH-1.0 |
1.0 |
0.4 |
400 |
2800 |
1000 |
1000 |
Φ400 |
Φ150 |
750 |
2880 |
2130 |
12 |
3.0 |
1000 |
W3/sk-3 |
VH-1.5 |
1.5 |
0.4 |
600 |
3000 |
1100 |
1110 |
Φ400 |
Φ200 |
750 |
2850 |
2100 |
10 |
4.0 |
1100 |
W3/sk-3 |
VH-2.0 |
2.0 |
0.4 |
800 |
3200 |
1200 |
1200 |
Φ400 |
Φ200 |
750 |
3350 |
2500 |
10 |
5.5 |
1500 |
W3/sk-3 |
VH-2.5 |
2.5 |
0.4 |
1000 |
3400 |
1300 |
1300 |
Φ400 |
Φ200 |
750 |
3800 |
2880 |
8 |
7.5 |
1700 |
W4/sk-6 |
VH-3.0 |
3.0 |
0.4 |
1200 |
3600 |
1400 |
1400 |
Φ400 |
Φ200 |
750 |
3850 |
3000 |
6 |
7.5 |
1800 |
W5/sk-9 |
|
