Principle of structure and its function

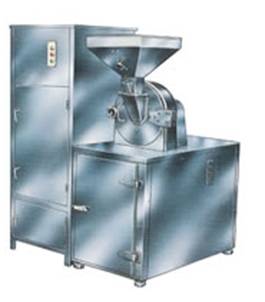

The grinder set consists of Model 30B grinder, EXC collector of raw material and ESC collective duster.It solves the problem, i.e. the dust is flying during the period of crushing raw material.The principle of work is as follows:after raw material is fed into the crushing chamber, it undertakes the comprehensive action such as impacted by teeth, shearing force, friction force, impacted between raw materials, finally the raw material are crushed.Through sieving. The needed powder an be got.
The grinder, collector of raw material and ESC collective duster are all made of stainless steel and ane in conformity.
Technical parameters
Model |
20B-C |
30B-C |
40B-C |
Capacity (kg/h) |
60-150 |
100-300 |
160-800 |
Revolution of spindle (r/min) |
4500 |
3800 |
3400 |
Size of fed material (mm) |
6 |
10 |
12 |
Size of grinded material (mesh) |
60-120 |
60-120 |
60-120 |
grinding motor (kw) |
4 |
5.5 |
11 |
Power of dust-catching motor (kw) |
1.5 |
1.5 |
1.5 |
Overall dimensions (L*W*H)(mm) |
1100*600*1650 |
1200*650*1650 |
1400*700*2310 |
|
