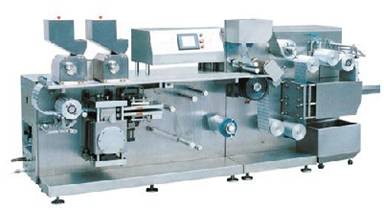

Usage:
This series machine is at high precise and the latest roller and plate type blister packing machine, it applies to pharmaceutical industry ,food industry, medical appliance and electronical area. It is suitable for packing capsules, tablets ,milk pieces, candy, electronical element and similar material ,with sealing packing in al-pvc, paper-pvc.
Technical parameter:
| Non-poisonous PVC |
Thickness0.25*Width220(mm) |
Aluminum Foil PTP |
Thickness0.02*Width220(mm) |
PVC&PTP |
OD of Reel<Ø400mm
Dia. of Reel Core<Ø70 - 80(mm) |
Punching speed(3shift gears) |
20 - 40, 30 - 80,
40 - 120(times/min) |
Packing Efficiency |
0#, 1#, 2#, 3#Capsules Order Arranging Packing
11 - 17Thousand pcs/hour
6 - 13Tablets15 - 30Thousand pcs/hour |
Overall Dimensions
(L*W*H) |
3050*935*1400(mm) |
Weight |
2000Kg |
Installed Power |
9Kw.380V.50Hz/220V.60Hz |
|
