[ Features ]
PTFE tubing is manufactured by ram extruding method
with PTFE granular resin.
PTFE is the most chemical-resistant of all known Plastics. It Has
the best electrical properties of plastics.
[
Specifications ]
| Specification
|
outside
diameter (mm) |
wall
thickness (mm) |
Length (mm) min |
| Nominal
|
Tolerance
|
Nominal
|
Tolerance
|
| 24 2
252
292
29.62 |
24
25
29
29.6 |
 0.65
|
2
|
0.30
|
4000
|
|
322
323.5
402
404
504
505 |
32
32
40
40
50
50 |
0.80
|
| 3.5
|
038 |
| 2
|
0.30 |
| 4
|
0.38
|
| 5
|
| 512
524
642.5
644.5
812.5
822.5
823 |
51
52
64
64
81
82
82 |
0.95
|
2
|
0.30 |
| 4
2.5
4.5
2.5
2.5
3 |
0.38 |
| 903
905
1043 |
90
90
104 |
1.10
|
3
5
3 |
0.30 |
| 1293.5
1544
2044 |
129
154
204 |
1.20 |
3.5
4
4 |
0.35 |
[ Main properties
]
| Properties |
unit |
Result |
| Apparent density |
g/cm3 |
2.10-2.30 |
| Tensile strength(min) |
MPa |
18 |
| Ultimate elongation(min) |
% |
230 |
[
Applications ]
Insulating cover for conductor,
pipe for corrosive fluids.
|

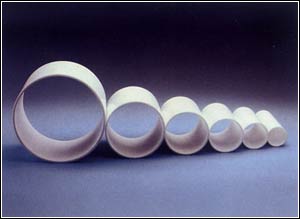

Polytetrafluoroethylene(PTFE)Tubing
