Polytetrafluoroethylene(PTFE)rod

[ Features ]

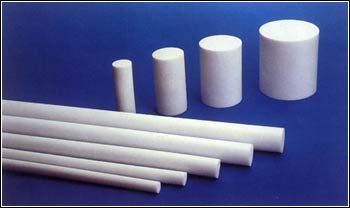

There are two kinds of PTFE rods to offer. One is manufactured by Paste extruding method in the diameter from 4 to 9mmand the other Is made by ram extruding method is the diameter from 10to 50mm;rods Over the diameter 50mm are manufactured by moulding. PTFE is the most chemical-resistant of all known plastics. It does not age.
PTFE has a wide range of practicable temperature from-180+260and a wax-like surface to which anything hardly sticks.
PTFE has the lowest coefficient of friction of all known solid materials. It has the best electrical properties of all plastics.



[ Types and specifications ]

TYPES

Diameter(mm)

Length(mm)

Nominal

tolerance

Nominal

tolerance

SFFBN

4,5,6

+0.48

0

100

+5.0

7,8,9

+0.58

0

SFBN

10,13,15

16,18

+1.10

0

1000

+3.60

20,25,30

+1.30

0

35,40,45

50

+1.60

0

55,60,65,70,75

80,85,90,100

+2.00

0

100-300

+2.50

110,120,130

140,150

+2.50

0

180,200,250

270,300

+3.0

0

100

+2.0


[ Main properties ]

Properties

unit

Result

Apparent density

g/cm3

2.10-2.30

Tensile strength (min)

MPa

14.0

Ultimate elongation (min)

%

140

Note: When the diameter of rod is larger than 16mm.only test Apparent density

[ Applications ]
Electrical Insulation,seal,Antisticking materials.
